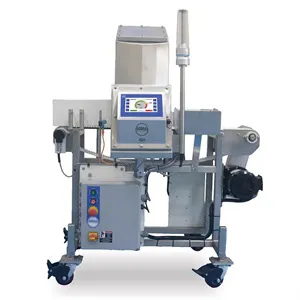

BottleChek Metal Detector Conveyor
BottleChek Metal Detector Conveyor
The BottleChek Metal Detector Conveyor is designed to inspect pharmaceutical bottles or vials at the end of the packaging line for unwanted metallic particles. The system easily integrates into any production line for side-by-side transfers.
Fail-safe mechanisms eliminate bottle damage and product loss during inspection process. In the event of metal contamination, rejected product is pushed off the production line into a stainless steel tray, a standard lockable reject bin or a side-by-side transfer to another conveyor belt.
The IQ4 range of Metal Detectors offer optimized mechanics to deliver performance improvements using variable-frequency detection (31 to 882 KHz).
DDS Vector Display Delivers Perfect Product Set-ups
The Direct Digital Signal (DDS) vector display provides a graphic representation of the metal detection process, aids in perfect product set-up and is an excellent diagnostics tool.
Auto Learn Provides Simple and Fast Set-up
The BottleChek will automatically set-up and store 200 different pre-sets, calibrating for product effect and loose material as the product passes through the system.
Easy to Clean and Maintain
The BottleChek is fully GMP compliant and is made with a brushed finish with no dust traps.
Additional Features
- Caster (Lockable wheel and swivel)
- Lead free construction
Specifications
- Material of Construction: 304 Brushed stainless steel
- System Length: 1892 mm
- Line Height: 914 mm
- Standard Belt Width: 102 mm Modular Belt
- Belt Type: Modular
- Speed: Up to 30 meters per minute
- Environment: -10°C to 60°C / 14°F to 140°F; Humidity 0 - 95% RH
- IP Rating: IP65 / IP69K
- Power Requirements: 230v or 115 1ph / N+E 50 or 60Hz
- Ethernet Capability: Yes
- USB Capability: Yes
