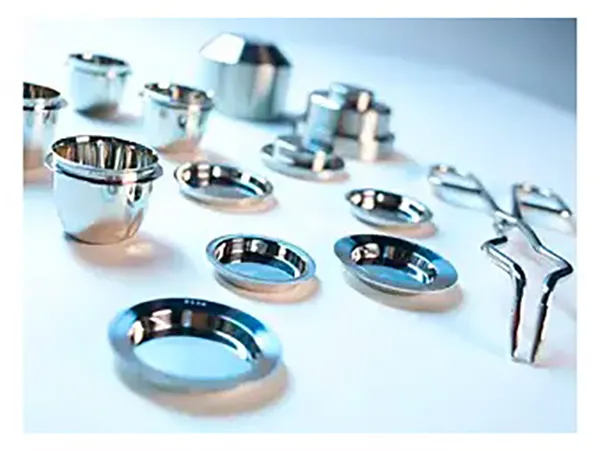

Platinum molds and crucibles

Platinum molds and crucibles

Platinum molds and crucibles

Labware is of critical importance in sample preparation by fusion. Malvern Panalytical offers molds and crucibles made of 95% platinum are 5% gold. They are available in a wide range of sizes and thicknesses to help you obtain the best analytical results.

We also offer nickel and zirconium crucibles for peroxide fusion.

Malvern Panalytical fusion instruments were developed to be used with specifically designed platinumware. All our platinum accessories have been tested and engineered to provide:

  • The best mixing performance.
  • Longer lifetime.
  • Higher success rates in preparation of glass disks.
  • Perfect compatibility with our fusion instruments.

Molds & Crucibles

Molds Catalog

Catalog Number

Mold

P-0230-00

30 mm Claisse regular mold, 0.6 mm thick, 18 g

P-0230-01

30 mm Claisse heavy mold, 1 mm thick, 30 g

P-0232-00

32 mm Claisse regular mold, 0,6 mm thick, 21 g

P-0232-01

32 mm Claisse heavy mold, 1 mm thick, 36 g

MO3001-0A

32 mm Claisse shallow mold, 1 mm thick, 31 g

MO3009-B-0A

32 mm Claisse Eagon 2 mold, 0.8 mm thick, 33 g

MO3010-B-0A

32 mm Claisse heavy Eagon 2 mold, 1.2 mm thick, 49 g

P-0235-00

35 mm Claisse regular mold, 0.72 mm thick, 25 g

P-0235-01

35 mm Claisse heavy mold, 1 mm thick, 48 g

MO3003-0A

35 mm Claisse shallow mold, 1 mm thick, 36 g

P-0240-00

40 mm Claisse regular mold, 0.8 mm thick, 34 g

P-0240-01

40 mm Claisse heavy mold, 1 mm thick, 48 g

MO3002-0A

40 mm Claisse shallow mold, 1 mm thick, 44 g

MO3011-B-0A

40 mm Claisse Eagon 2 mold, 1 mm thick, 53 g

MO3012-B-0A

40 mm Claisse heavy Eagon 2 mold, 1.2 mm thick, 62 g

MO3018-B-0A

32 mm Claisse Pt-DPH Eagon 2 mold, 0.8 mm thick, 33 g

MO3019-B-0A

32 mm Claisse heavy Pt-DPH Eagon 2 mold, 1.2 mm thick, 49 g

MO3020-B-0A

40 mm Claisse Pt-DPH Eagon 2 mold, 1 mm thick, 49 g

MO3021-B-0A

40 mm Claisse heavy Pt-DPH Eagon 2 mold, 1.2 mm thick, 62 g

Crucibles Catalog

Catalog Number

Crucible

P-0130-03

Claisse Optimix™ crucible (with three humps), 30 g

P-0325-00

Claisse Bis!™ crucible, 26 g

P-0330-01

Claisse heavy Bis! crucible, 30 g

P-0120-00

Claisse flat bottom crucible, 20 mL, 24 g

P-0125-00

Claisse flat bottom crucible, 25 mL, 26 g

P-0130-00

Claisse flat bottom crucible, 30 g

CR3010-B-0A

Claisse Eagon 2 flat bottom crucible, 40 g

CR3011-B-0A

Claisse Eagon 2 crucible with dimple, 40 g

CR3008-B-0A

Claisse Pt-DPH Eagon 2 flat bottom crucible, 40 g

CR3009-B-0A

Claisse Pt-DPH Eagon 2 crucible with dimple, 40 g

CR1900-0B

Zirconium crucible, 25 mL

AC3103-B-0B

Zirconium lid for crucible CR1900

P-0430-02

Zirconium crucible, 50 mL

P-0431-02

Zirconium lid for crucible P-0431-02

CR1902-0A

Nickel crucible, 25 mL

AC3119-B-0A

Nickel lid for crucible CR1902

P-0450-02

Nickel crucible, 50 mL

P-0451-04

Nickel lid for crucible P-0450-02

Accessories

Accessories Catalog

Catalog Number

Other Accessories

PRK-RS030

Flat bottom crucible reshaper compatible with P-0130-00

PRK-RS031

Eagon 2 crucible reshaper (dimple), compatible with CR3009-B-0A and CR3011-B-0A

PRK-RS032

Eagon 2 crucible reshaper (flat bottom), compatible with CR3008-B-0A and CR3010-B-0A

PRK-RS033

32 mm Eagon 2 mold reshaper, compatible with MO3009-B-0A, MO3010-B-0A, MO3018-B-0A and MO3019-B-0A

PRK-RS034

40 mm Eagon 2 mold reshaper, compatible with MO3011-B-0A, MO3012-B-0A, MO3020-B-0A and MO3021-B-0A

PRK-RS035

32 mm shallow mold reshaper, compatible with MO3001

PRK-RS036

40 mm shallow mold reshaper, compatible with MO3002

PRK-RS037

35 mm shallow mold reshaper, compatible with MO3003

PRK-PK001

Claisse mold polishing kit (120 V)

PRK-PK002

Claisse mold polishing kit (240 V)

P-0600-20

Polishing recharge 1

P-0600-30

Polishing recharge 2

PRK-VM001

Claisse VortexMixer™ (110 V)

PRK-VM002

Claisse VortexMixer™ (220 V)
