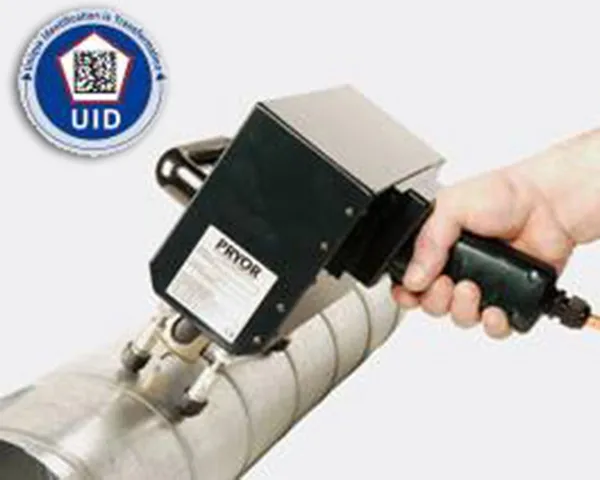

Portable Dot Marking Machines - Marktronic™ 3000 P130-30 3000 P130-40
Portable Dot Marking Machines - Marktronic™ 3000 P130-30 3000 P130-40
3000 P130-30 | 3000 P130-40
- Very fast
- Robust
- Deep marking
- Large marking window
- Electromagnetic (no air)
Features
- Powerful dot marking machine capable of indenting components with deep marks.
- Electric Solenoid (no air connection) with programmable depth settings. Capable of marking all engineering materials up to 62HRc (800Hv)
- Robust mechanism and steel housing especially well suited to industrial applications
- Very large marking area especially suited to marking long inscriptions such as Chassis VIN marking.
- Very high speed operations
- Adjustable standoff posts provide clear visibility and flexible fixturing options with custom fixturing available on request.
- 100 - 220v single phase supply (no pneumatics required).
- ‘Press and hold’ trial run feature allows the marking location to be determined quickly before marking.
- Low running costs and virtually no consumable costs.
Portable Dot Peen Marking Machines
3000 controller and software
- Separate 3000 controller protects electronics from shock loading of mechanical marking operation.
- Durable integrated membrane keyboard with LCD linked function keys.
- Very large embedded graphical display
- Simple to use menu system software with marking preview
- Advanced standard features incl. serial numbering, passwords, arc marking, time/date and logo marking etc.
- Various communication ports and I/O
- Wide Range of Options
- Portable Dot Peen Marking Machines
Technical Specification
- Marking Area: 130mm x 30mm (3000 P130-30) & 130mm x 40mm (3000 P130-40)
- Std. Character Sizes: 0.3mm – 29.9mm in increments of 0.3mm
- Marking Formed: 5 x 7, 7 x 9, Varidot, HPGL, BMP Logos
- Marking Speed: Variable, depends on application
- Memory storage of up to 1350 marking programs
- 3 meter umbilical cable
- 2 x RS232 and Digital I/O (8 In 6Out) Connectivity. Optional Ethernet TCP/IP
- Full QWERTY integrated membrane keyboard with addition PS/2 port for external keyboards.
- On-screen mark preview and trial-run features.
- PC Option using Pryor MarkMaster™ Graphical Software
- Portable Dot Peen Marking Machines
Applications
- Direct Part Marking (DPM)
- IUID MIL130 Compliance marking
- Programmable marking
- Component identification
- Component traceability
- Chassis VIN Marking
- Serial numbering
- Steel stock marking
- Cast and forge marking
- Logo marking
- Security marking
- Health & safety appliance marking
- Certification marking
- Time and date marking
- Part numbering
- Batch and shift coding
- Calibration systems
- Label and tag marking
- Portable Dot Peen Marking Machines
Description
The Marktronic 3000 ‘P’ (Portable) series machines have been designed to offer the flexibility and benefits of dot marking technology in a mobile, handheld, simple to use package.
The build quality and mark precision are second to none. The lead screw driven marking head guarantees dot precision unmatched on other portable systems meaning the P130-30 is capable of the most demanding DataMatrix applications.
The 130-30’s patented mechanism delivers the fastest marking times available in any handheld unit. Reliability is assured, the unit features the same mechanics used in our i130-30 integrator machine which is designed for continuous production line use.
The 3000 Controller is a separate unit to ensure it is protected from the mechanical shock loading of the marking operation. The easy to use software allows for 5 font types and up to 1350 layouts to be stored. Available in a variety of languages (including English, French, German, Spanish, Swedish, Finnish, Italian, Portuguese, Cyrillic and Czech), the software also contains features such as serial numbering, date and time marking and password protection.
