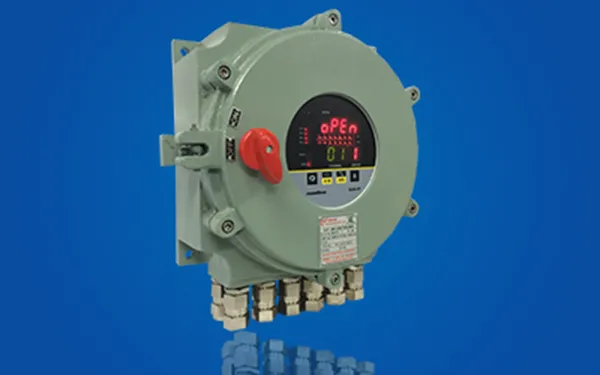

8 Channel Flame Proof Scanner 8208-XP

8 Channel Flame Proof Scanner 8208-XP

8 Channel Flame Proof Scanner 8208-XP

Masibus Manufacturer of 8208-XP Multichannel Temperature Scanner which is the Ex-proof version of model 8208, and is certified for use in Hazardous areas.

Multichannel Temperature Scanner 8208-XP is the most compact multi-point scanner available in the market; designed with the latest Touch Sense Keys for Flame Proof Enclosure to give full programmability and ease of operation.

Multichannel Temperature Scanner 8208-XP comes in density of 4 or 8 channels; Universal Analog input per channel and has 4 fully programmable relay output for Alarm & Trip purpose. The unit has separate Numeric displays for Channel, Group and PV. All Configuration and Calibration can be done from front panel keypad The 4 relays can be freely mapped as Alarm, Trip or control set point. User has option to program set-points and logic individually or group wise. Channels can be configured up to 4 groups with one relay per group; 2 groups with 2 relays per group or 1 group with 4 relays per group. Two discrete LEDs are provided per channel and one LED per relay for status indication.

Multichannel Temperature Scanner 8208-XP has built-in Isolated RS485 Modbus serial port and provides analog retransmission output with group Max/ Min to further interface with PLC/DAS/DCS/ SCADA.

Multichannel Temperature Scanner 8208-XP is available in two options Type-1 and Type-2 Wall Mount Enclosure. 8208-XP Type-1 Enclosure has maximum 8 glands possibility, Type-2 Enclosure has maximum of 12 glands possibility with Rotary Switch for on/off.

Features

  • Universal input per channel
  • Ex-proof protection for Gas groups IIA & lIB, IP65, Zone-1 (Optional: IIC Group)
  • Operation by front Touch sense keys
  • Fast Sampling rate with instantaneous relay action
  • Four relays for alarm/trip
  • RS485 Serial communication port for remote monitoring
  • Comprehensive Alarm/Trip logic programming
  • Multiple Levels of configuration and password protection
  • Analog Retransmission (Optional)

Applications

  • Hazardous areas like Chemical / Oil & Gas, Petrochemical Industries.
  • Pharma Application
  • Gas Compression
  • Mining Equipment monitoring and protection
  • Gas detection
  • Fire detection and annunciation
  • As a distributed I/O module for interface with PLC/DCS/DAS etc

Industries

  • Power
  • Metal
  • Water
  • Panel Manufacturing
  • Chemical
  • Food
  • Paper
  • Pharma
  • Sugar
