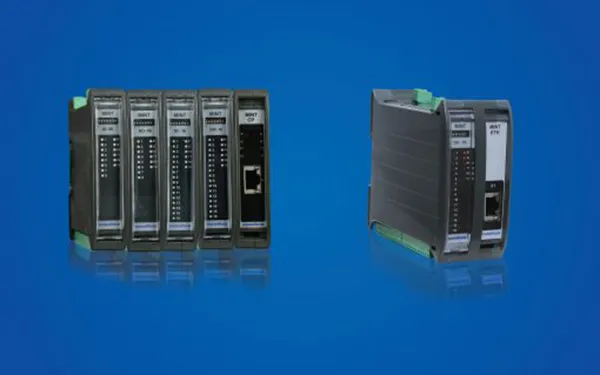

MINT Intelligent Digital and Analog I-Os

MINT Intelligent Digital and Analog I-Os

MINT Intelligent Digital and Analog I-Os

Masibus Manufacturer of MINT I/O series which is the most cost effective Field Interface module for Smart Systems whether it is DAS, SCADA, PLC or DCS.
The Remote IO Modules are available in Universal 8 channel Analog Input, 8 channel Analog Output, 16 channel Digital Input and 16 channel Digital Output.

Using MINT I/Os supervisory system one can read remote process values and events as well as communicate for process control. These Remote IOs consist of powerful processors suited for high-speed communication and enhanced hardware features for Remote Monitoring and Control.

The MINT I/O family has Modbus RTU & Ethernet-Modnet port that integrates with same type of existing network in Plant.

MINT DI module has unique Filter time selection feature for Input Noise Cancellation and Debounce time feature to prevent extra events from a single contact closure. MINT DI can also store counter input of frequency up to 1KHz. MINT CP is a Communication Processor which connects MINT I/Os and any make of Serial Modbus-RTU Devices to a Modnet Ethernet Network.

mINTPLUS Configuration Software configures all communicating parameters in MINT series. The MINT series is best suited for processes that require reliable and efficient control with high speed IOs connectivity for system monitoring and information exchange up to the corporate network.

Features

MINT I/O

  • 2 Modbus Serial ports RS485
  • 1 RS485 + 1 Modbus over TCP/IP Port – Modnet (optional)
  • 2 Masters can be connected at a time in MINT with 2 RS485 Port option
  • Compact DIN Rail enclosure
  • High-Speed communication
  • Supports up to 15 Clients on TCP/IP
  • LEDs for Fault, Communication and Power

MINT CP

  • No. of Modbus serial slave devices supports on RS485 – 15 Max.
  • Modbus over ethernet (Modnet) – 10/100Mbps- auto-detecting
  • Serial RS485 (Protocol supported: Modbus RTU Master)

Free mINTPLUS Configuration Software

  • Configuration and Diagnostics
  • Online Excel Sheet logging

Applications

  • Pulse Totalizing – Utility Accounting
  • Cost effective Field Interface to PLC/DCS
  • I/Os with DualRS485 for Local HMI/Remote PLC Monitoring and Control
  • Remote IOs for IIOT Gateways
  • Security Systems
  • Solar String Monitoring
  • Building Automation
  • Gas Detection systems
  • Pipeline Monitoring
  • Environmental Monitoring
  • Infrastructure Monitoring
  • Asset Management
  • Fire Fighting Industry
  • Multi-Point Smart Transmitter
  • Machine Health monitoring
  • Borewell Pump Automation remotely in Water Distribution

Industries

  • IIOT Industry 4.0
  • Power
  • Metal
  • Water
  • Panel Manufacturing
  • Chemical
  • Food
  • Paper
  • Pharma
