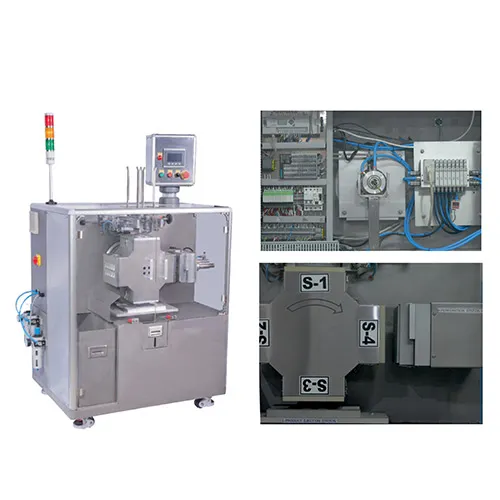

Fully Automatic De-Foiling Machine EZEE DE BLIST - 1510 4S-2S

Fully Automatic De-Foiling Machine EZEE DE BLIST - 1510 4S-2S

Fully Automatic De-Foiling Machine EZEE DE BLIST - 1510 4S-2S

Sailent features

  • Compact Lab Model Conforming to cGMP Standards
  • Fully automatic with Pneumatic indexer
  • Capable of push - thru foil, laminated foil and child resistant foil etc.
  • Handles all pack formats
  • PLC with user friendly touch screen
  • Zero damage and zero contamination levels
  • Tool less product mould change over
  • No Skilled operator required
  • Easy access for cleaning

Technical features

Model

1510-45

1510-25

Max. Blister size

100x150x15 mm

100x150x15 mm

Operating Speed

30 - 40 Packs/Minute

15 - 25 Packs/Minute

Standard Voltage

110/230 V, Single Phase AC 50/60Hz

110/230 V, Single Phase AC 50/60Hz

Power Consumption

2.0 kW

2.0 kW

Compressed Air

6-9 Bar

6 Bar

Machine dimension

1200 x 800 x 1700 mm

610 x 650 x 1520 mm

Net weight

500 Kgs

200 Kgs
