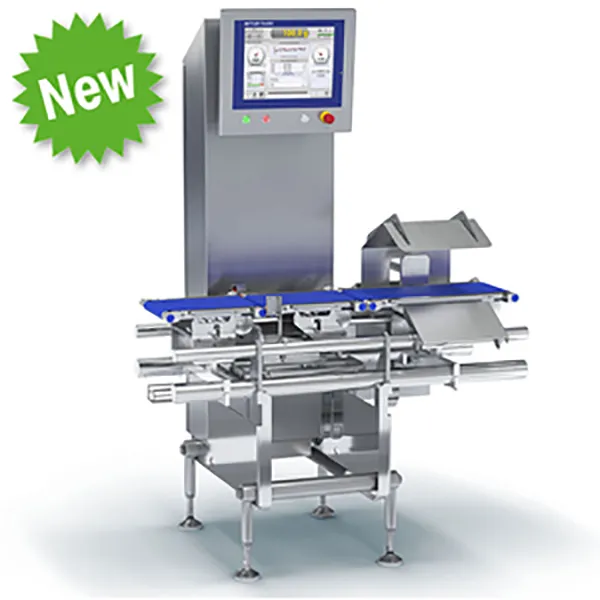

C35 AdvancedLine WD Checkweigher
C35 AdvancedLine WD Checkweigher
Precision and Versatility.
Built for harsh environments, the C35 combines uncompromising precision at fast speeds with a stable and resilient system design which, including the HMI, is fully IP69 rated and proven resistant to most caustic detergents and high-pressure cleaning.
Highest Accuracy in Harsh Environments
Highest accuracy including MID certification helps to comply with local weighing regulations and reduce costly product waste.
Hygienic Design for Easy Cleaning
The system provides easy access for cleaning and sloped surfaces throughout to prevent liquid retention and discourage bacterial contamination.
Resilient in Harsh Environments
The entire system, including the HMI, is IP69 rated and proven resistant to most caustic detergents, disinfectants, and high pressure cleaning.
Specifications - C35 AdvancedLine WD Checkweigher
|
Throughput
|
250 ppm
|
|
HMI
|
15"
|
|
Weighing Range
|
25 g - 7 000 g
|
|
Maximum Product Weight
|
7 kg
|
|
Transport Height
|
550 mm - 1,100 mm (± 50 mm)
|
|
Industry
|
Food; Other
|
|
IP Rating
|
IP 69
|
|
Accuracy
|
from ±0.2 g (200 mg)
|
|
Production Environment
|
Wet; Harsh
|
|
Weighing Technology (Load Cell)
|
EMFR
|
|
Customization Options
|
Bespoke handling; OEM
|
|
Approval
|
Weights & measures design approval for official verification (MID certifiable)
|
|
Weighing Combinations
|
Contamination Detection
|
|
Material Number(s)
|
240035002
|
