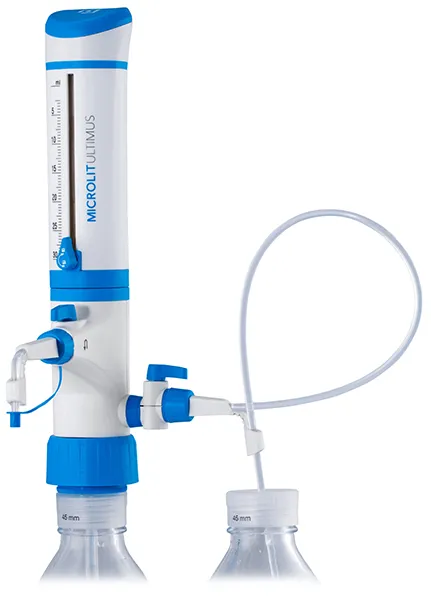

Ultimus
Ultimuswith Dual Inlet Technology
Bottle Top Dispenser with patented dual-inlet functionality to dispense reagents from 2 inlets. High chemical compatibility and smooth dispensing
- Accurate and jam-free dispensing
- Rinsing, Dilution, Re-filling and Purging modes with Dual InletTM
- Recirculation valve technology to prime instrument without loss of reagent
- Fully Autoclavable at 121° C, 15psi. for 10-15 mins
- High chemical compatibility with SpringlessValveTM and PTFE piston
- Optimized user experience with EasyKnob™ and FlexiNozzle™
- Calibration certificate provided – Conforms to ISO 8655 standards
- Certifications – ISO 9001, ISO 13485, ISO 17025, CE
Microlit Ultimus is a Bottle Top Dispenser that works on Dual InletTM Technology, Recirculation Valve Technology and Springless ValveTM Technology. The Dual Inlet Technology, patented in the US and EU, enables 4 liquid handling modes – rinsing, dilution, refilling & purging without dismounting the dispenser.
Standard Dispensing: Knob A – Open, Knob B – Closed
In this mode, the dispenser dispenses the liquid normally into the receiver from the bottle it is mounted on.
Purging: Knob A – Closed, Knob B – Closed
In this mode, the liquid is recirculated into the same bottle on which the dispenser is mounted. This process removes the air from the dispenser, without wasting any reagent.
Dilution/Rinsing/Second Liquid Dispensing: Knob A – Open, Knob B – Open
In this mode,the liquid from a second source can be dispensed into the receiver. The second liquid can be distilled water, thus allowing the user to rinse the instrument without dismounting it or dilute the reagent within the receiver.
Bottle Refilling: Knob A – Closed, Knob B – Open
In this mode, the liquid from a second source can be used to refill the bottle, without dismounting the dispenser.
Designed with ergonomics and intuitive handling in mind, it offers excellent chemical compatibility and enables the achievement of precision in practical laboratory environments. Ultimus also features two product innovations: EasyKnob™ and FlexiNozzle™ that enhance its usability.
What’s in the box?
- Dispensing unit
- Calibration certificate
- Calibration Tool
- Bottle Adaptors for all standard reagent bottle neck sizes (28mm – 45mm)
- Instruction Manual
Applications
Microlit Ultimus, a bottle dispenser, is more than just a scientific instrument. It has a wide application in standard laboratory environments such as pharmaceuticals, academics, research institutes, healthcare institutions, and the food & beverage industry to dispenser solvents, corrosive acids and other reagents. Ultimus may also be used in the industry as an e-liquid bottle dispenser, essential oils bottle dispenser or a CBD oil bottle dispenser.
With increasing industrial demand, the popularity of Microlit bottle top dispensers is expected to go as more industries discover the top-notch quality, high functionality, and assured improvement in efficiency that the bottle dispenser offers.
Specifications
|
Model No.
|
Description
|
Vol. Range
|
Increment
|
Accuracy
|
CV
|
|
|
|
|
|
+%
|
+ml
|
+%
|
+ml
|
|
ULT-2.5
|
Ultimus Bottle Top Dispenser 0.25-2.5ml
|
0.25-2.5ml
|
0.05ml
|
0.5
|
0.0125
|
0.2
|
0.005
|
|
ULT-5
|
Ultimus Bottle Top Dispenser 0.5-5ml
|
0.05ml
|
0.1ml
|
0.5
|
0.025
|
0.2
|
0.01
|
|
ULT-10
|
Ultimus Bottle Top Dispenser 1-10ml
|
1-10ml
|
0.2ml
|
0.5
|
0.05
|
0.1
|
0.01
|
|
ULT-30
|
Ultimus Bottle Top Dispenser 2.5-30ml
|
2.5-30ml
|
0.5ml
|
0.5
|
0.15
|
0.1
|
0.03
|
|
ULT-60
|
Ultimus Bottle Top Dispenser 5-60ml
|
5-60ml
|
1.0ml
|
0.5
|
0.3
|
0.1
|
0.06
|
|
ULT-100
|
Ultimus Bottle Top Dispenser 10-100ml
|
10-100ml
|
2.0ml
|
0.5
|
0.5
|
0.1
|
0.1
|
