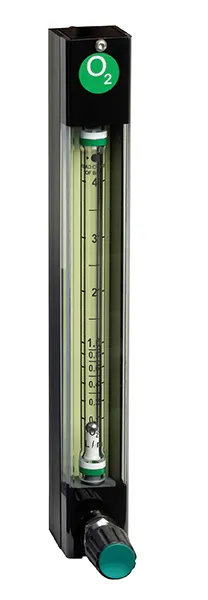

Series 1650 Special Veterinary Gas Variable Area Flowmeter

Series 1650 Special Veterinary Gas Variable Area Flowmeter

GENERAL INFORMATION

The MPB Series 1650 Veterinary Gas Flowmeter consists of a polycarbonate safety cover, integral flow control valve and is suitable for trolley, or wall mounting.

Description

MPB 1650 SERIES FEATURES

• EASY IN-SITU TUBE REMOVAL
• THE FLOWMETER HAS A PHOTO LUMINESCENT BACKING TO PROVIDE A DEGREE OF BACK LIGHTING IN THE EVENT OF A POWER FAILURE
• ACCURACY OF MEASUREMENT IS +/- 2.5% FSD, OR BETTER
• PROCESS CONNECTION: 1/8″ NPTF, BLACK ANODISED ALUMINIUM
• FLOW TUBE IS SUPPLIED COMPLETE WITH COLOUR BANDING TO INTERNATIONAL STANDARDS
• REMOVABLE FLOW CONTROL CARTRIDGE DESIGN TO ALLOW QUICK AND EASY SERVICING
• SAFETY COLLAR TO PREVENT SHUT OFF

STANDARD OXYGEN FLOW RATES

0.1-4 L/min 02 @ 1013 mbar abs 20oC, 0.1-8 L/min 02 @ 1013 mbar abs 20oC , 0.1-10 L/min 02 @ 1013 mbar abs 20oC

Other gases available upon request
