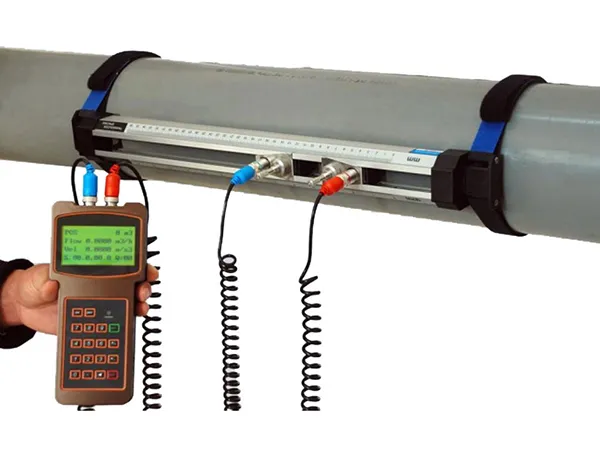

Handheld Ultrasonic Flowmeter

HANDHELD ULTRASONIC FLOWMETER

Description

• Linearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy: better than ±1%
• Non-Intrusive, clamp-on transducer, on pressure drop, no pipe disturbance
• Several types transducer for selection, measuring pipe size from DN15mm to DN6000mm
• Size: 210x90x30mm, weight: only 0.5kg
• Built-in rechargeable NI-MH battery, provide over 12 hours of continuous operation
• Display instantaneous flow, accumulated flow (positive, negative and net), velocity, working status, etc.
• Built-in 24K data logger, store over 2000 lines measuring data
