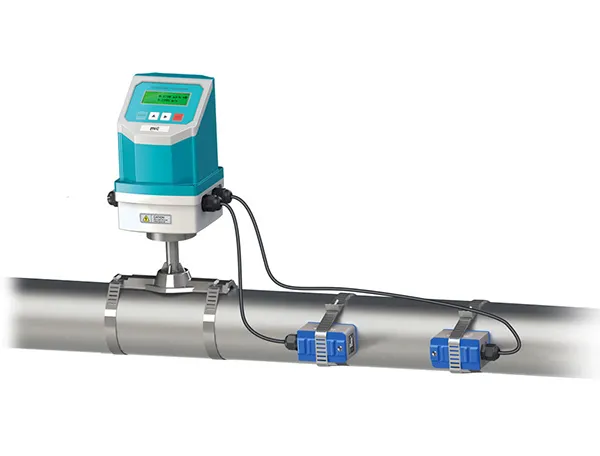

Ultrasonic Flowmeter

FUNCTIONAL TYPE UNIFIED FIXED ULTRASONIC FLOWMETER

Description

• Linearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy: better than ±1%
• Several types transducer for selection, measuring pipe size from DN15mm to DN6000mm
• Protection Grade of primary meter: IP68, can work in 2mm of water
• Browse date with magnetic stick on primary meter or reset parameter on secondary meter
• Integrate signal detecting and flow measuring on primary meter, display accumulated/instantaneous flow, velocity in circle; secondary meter can also display over 100 menus.
• Different version:UFM can support Chinese or English display, easy to operate.
• Connect primary and secondary meter through RS-485 interface, normal cable replace special cable, transmission distance up to 1000m.
