Vacuum Deaerator for Fluid

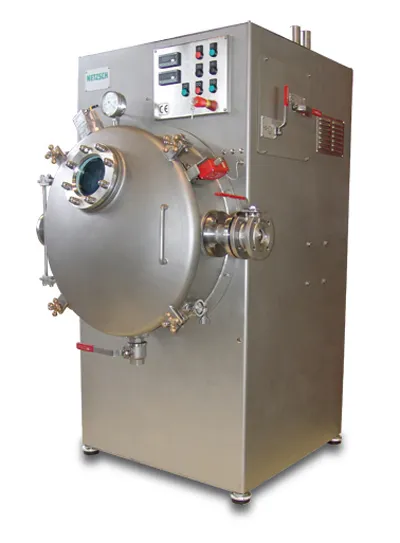

NETZSCH DA / DA-VS Vacuum De-Aerator for Fluid

Remove micronized dissolved gas removal and Air Pockets with the NETZSCH Vacuum De-Aeration System
In the NETZSCH Vacuum De-Aerator Boiler, micronized gases are removed from fluids with a wide range of viscosities. By means of the VTR Principle (vacuum – thin-film – rotary process), it is possible to process products from offset ink and shampoo, for example, to a wide variety of free-flowing compounds. The throughput is product and viscosity dependent and can range from 500 to 4000 kg/h. This machine can be used to de-gas both small quantities, from interchangeable tanks in batch operation, and large batches in continuous operation.

Technique

Vacuum draws the product into the de-aeration chamber and directs it to the center of the rotating plate
The resulting thin layer of product on the rotating de-aeration plate is continuously de-gased
The product is discharged by centrifugal force via an outlet pipe
The residence time of the product in the de-aeration chamber is controlled by non-return flaps and valves
High throughput rates
No charging pump required
Flexible batch sizes
Maximum product yield
Easy to clean
Low-maintenance
Easy operation
Compact design
Components that come in contact with the product are made of stainless steel
