SPIRAL PLATE HEAT EXCHANGER

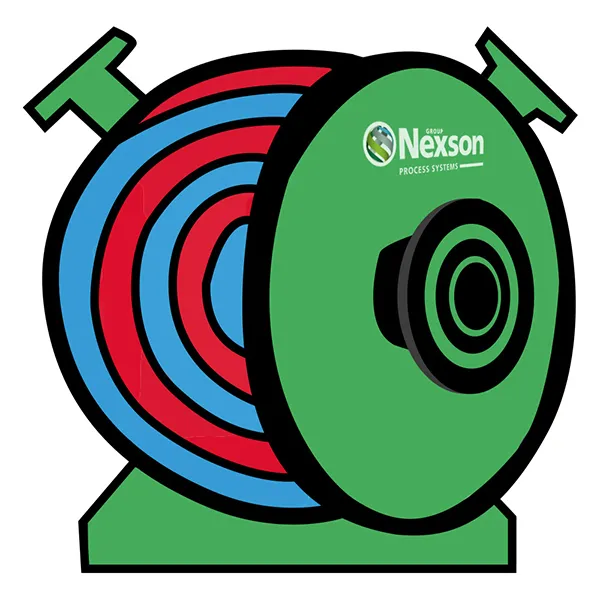

Our Spiral Plate Heat Exchangers are made of 2 concentric channels on which spacer pins are welded to form the channel’s gaps. Each channel gap and the width of the channels are selected to meet each Customer’s specific requirement and working conditions. It permits to take into account the flow rates, the sizes of the particles for fouling fluids and the pressure drops. These spacer pins facilitate turbulent flow in each channel.
Spiral plate heat exchangers can be manufactured in any material that can be formed and welded (carbon steels, stainless steels, duplex, super-duplex, titanium, nickel alloys, etc…) – SA 516 Gr60, SA 516 Gr70, 304 / 304L, 316 / 316L, UNS S310803, UNS S32205, UNS S32750, 904L, 254 SMO, C276, C22, C2000, Titanium…
Nexson spiral heat exchangers are used for a design pressure from full vacuum to 80 barg and at -200°C design temperature to 450°C.
