Chemical Reactor

Chemical Reactor

Nisha Engineering is one of the leading manufacturer, supplier & Exporter of Reactor, Chemical Reactor, Pharmaceutical reactor in India. Reactor, unlike mixing tanks, are totally sealed from the atmosphere. Mixing tanks are designed to disperse two or more chemicals together. Reactor on the other hand, allow the chemicals inside to go through a reaction phase which ultimately produces new and different chemical properties.

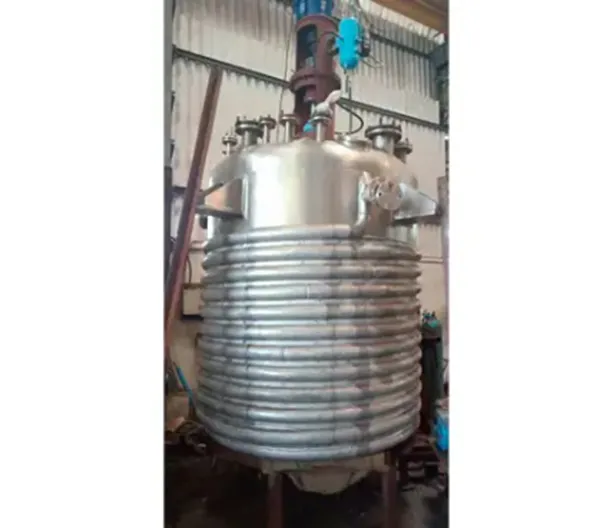

Limpet Reactors

Half-pipe jacketing provides very good heat transfer by allowing high flow rates. It is best suited for high temperatures and pressure applications utilizing hot oil or other high temperature media. Half-pipe is formed from a continuous coil and is “wrapped” around the vessel exterior in single or multiple zones to provide greater latitude for process capabilities. We use a 180 – degree half-pipe configuration that minimizes pressure and increases fluid velocity.

Jacketed Reactors

Also known as open jacket, conventional jacketing is a secondary external shell wrapped around the primary vessel to provide a space for heat transfer fluids. We add a spiral formed internal baffle to direct the heating media around the vessel form the inlet to the out. Conventional jacketing is best used on smaller diameter vessels.

We deal both in GMP and Non GMP reactors as per chemical as well as phrama industry.

We are also exporter of reactors all around the world.

Technical parameters

We manufacturer reactor vessels using stainless steel of grade SS 304 and Ss316. & MS .These stainless steel reactor vessel are mainly used in chemical & pharmaceutical industry.Stainless steel reactor vessel are available in 50 Lit to 50 KL capacity.We are offering reactor vessel like chemical Reactor vessel, Steel reactor vessels, Steel chemical reactor vessel and Stainless steel reactor vessel.These reactor vessels are well treated before their supply in the market.

Reactors Salient Features
