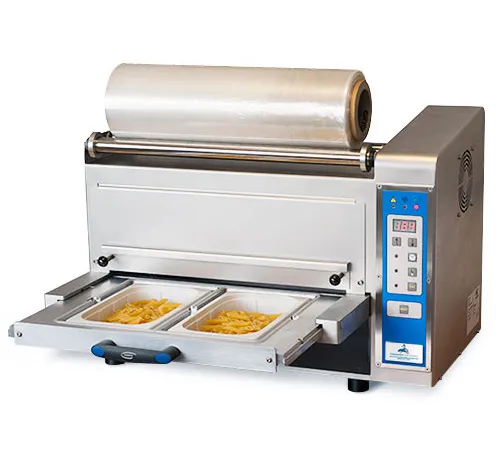

TS300 Table-Top Tray Sealer

TS300 Table-Top Tray Sealer

TS300 Table-Top Tray Sealer

Overview

The TS300 semi-automatic tray sealer is a more versatile machine than other modified atmosphere models. Offering the flexibility to change the tray sizes with different plates and larger vacuum pumps for increased production speeds. This sealing machine is ideally suited for production speeds up to 500 packs per hour on a twin tray formation and accepts D2 and D13 tray types.

The tray sealing machines are commonly installed in supermarkets and food factories producing ready meals, fresh and cooked meats, fish & vegetables and for any product that needs to be packaged airtight.

Technical Specifications

  • Maximum film width: 400mm
  • Maximum tray size for single die plate: 320 x 265mm
  • Maximum tray size for twin die plate: 177 x 265mm
  • Maximum tray size for four die plate: 177 x 132mm
  • Air supply: 80psi (5·5 bar)
  • Electrics: single- or three-phase
  • Machine dimensions: 671 × 474 × 397mm
  • Gross weight: 75kgs

Features

  • Stainless steel construction, manufactured to CE standards
  • Automatic sealing system & unwinding system
  • Digital electronic panel
  • Acoustic and light for seal completion
  • Profile cut film
