OPTIMA pharma GmbH

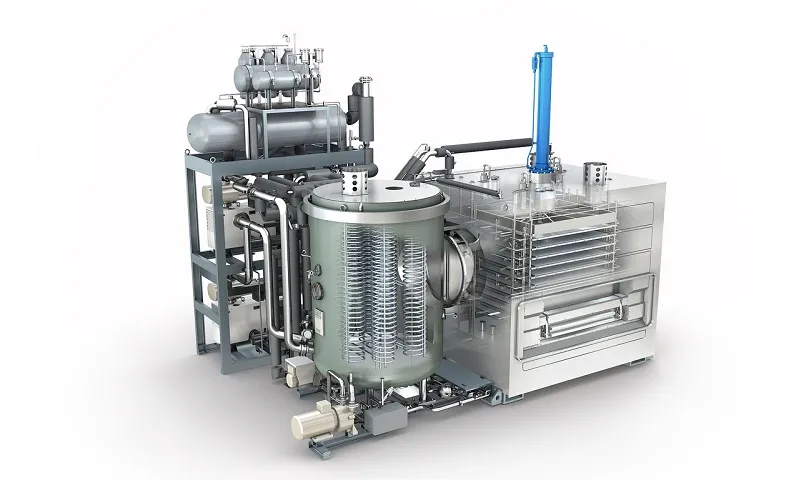

LYO-S - Freeze Drying System

Safe Freeze Drying System of large Quantities

Do you need a high-performance modular freeze dryer for a large project? Optima Pharma also offers a solution for this application – the OPTIMA LYO / S. This freeze dryer machine permits the safe lyophilization of large quantities with an installation friendly design and maximum flexibility. The freeze drying equipment chamber is designed as a separate housing with an intermediate valve as a separate component. The freeze dryers OPTIMA S can be loaded manually or automatically.

Features

• Condenser left / right of the chamber
• Integrated intermediate valve
• Optimized for use in Optima Pharma turnkey plants
• Pass Through - All In / All Out
• Modular system for quick and easy on-site installation
• Option of manual or automated loading
• Flexible configuration of peripheral systems (across floors)
• Designed for optimal use of space
• Two-block unit
• Can be configured for aseptic / non-aseptic production
• Flexible retrofitting for existing production plants
• SIP: Pure steam 1.5 barg / 127°C
• CIP: Spray lances / noozles
• Can be configured for use with future technologies (mass spectrometer/controlled nucleation)
