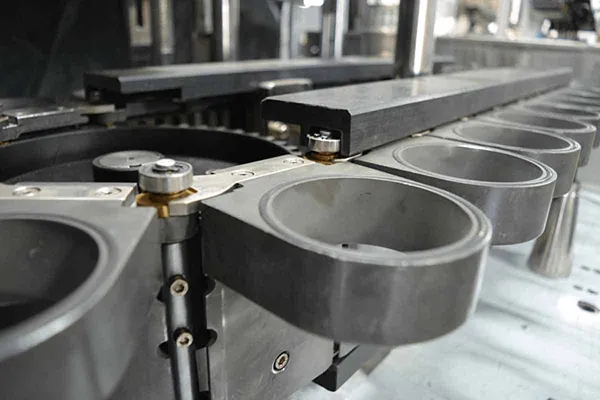

Mac 60
Mac 60
With a speed of 60 Tubes Per Minute, The Single Head Mac60 delivers great performance in a small package size.
Highlights
SS304 CONSTRUCTION
All static components above machine table top are manufactured using SS304, and parts in contact with product manufactured in SS316L.
Highlights
PRECISE PRINT MARK UNIT
The Pacmac orientation system, uses a 40kg stepper motor and an embedded control system.
Once the eye mark is found, motor is slowed and stopped and then reversed precisely to orient the tubes.
Highlights
TRULY ENDLESS TIMING BELT
Contemporary Timing belt design offer unparallel life of operation, noise free motion and precise movement.
Essential for good quality of orientation & closing.
Highlights
VERTICAL FILLING SYSTEM
Vertical dosing system with groove CAM reduces the machine stress while increasing dosage accuracy.
Highlights
COMBINATION OPTION
Our combinational machines offer one click change overs between Laminated plastic &Aluminium Tubes enhancing productivity.
Product Specifications
2200 mm
Upto 35mm (Standard)
Upto 60mm (Mac60-L)
1300 mm
50mm - 250mm
2250 mm
1300 Kgs
5KW (Lami Machine)
3KW (Aluminium Machine)
15 CFM (Lami Machine)
5 CFM(Aluminium Machine)
8-10Deg Celcius
1-300 ml
SS304
SS316L
Available Models:
