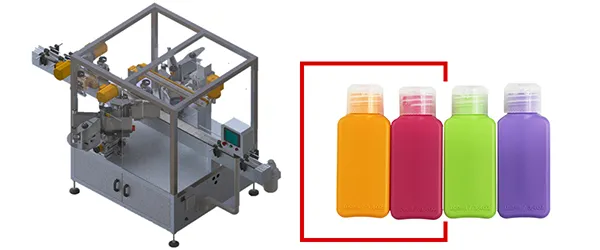

Fully Automatic Front Back Labeling Machine

AUTOMATIC FRONT BACK LABELING MACHINE

Model : PM 180/200/300 FB 10
PM 180/200/300 FB 10 is fully automatic front back labeling machine, this machine is designed to apply selfadhesive labels on the Flat/Square/Round/elliptical bottles machines are capable to place one, two or three labels atatime on different type of bottles.

SALIENT FEATURES -

Machines are designed in such away that the operations will be very smooth with highspeed machines are suitable for Glass/Plastic/Tin containers, Monocartons and corugated boxes.

1. Machines are build with SS 304.
2. No bottle no Label system inbuilt.
3. Machines can be custmized as per the customer requirement.
4. Both the label dispensors operates independently .
5. Option available for auto rejection system.

The PM 180/200/300 FB 10 is one of the user friendly and maintenance free model with the speed of 60 BPM to 300 BPM depending upon the product and label size

• MODEL :PM 180/200/300 FB 10
• MOC : SS 304/ FLAME PROOF OPTIONAL
• SPEED :80 TO 300 BPM
• POWER SUPPLY :1 PHASE 230V/50HZ/AC
• MACHINE DIMENSION : 2500mm L X 1400mm W X 1500mm H
