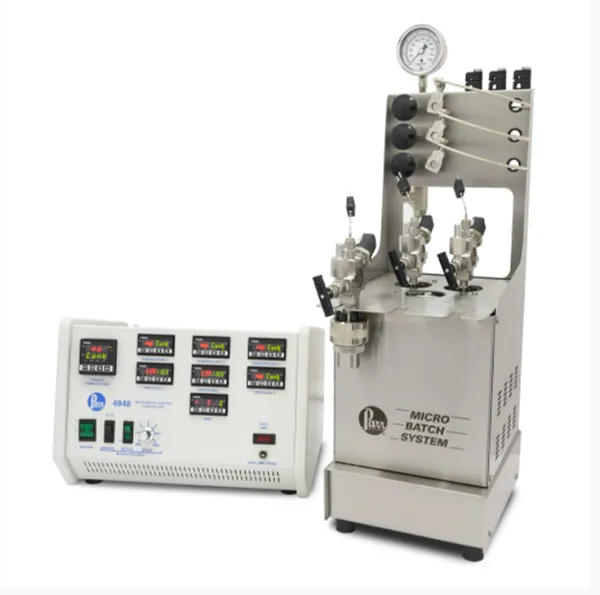

Series 2500 Micro Batch Reactor System

Parr Instrument Company is pleased to introduce our smallest ever family of stirred reactors, available in a number of configurations. With reactor volumes of 5 mL or 10 mL, independent reactor gas filling, PID temperature control, and a choice of two closure styles, the flexibility of the MBS 2500 is sure to bring value to your small volume, high pressure project.

Based on the popular Parr MRS 5000, the MBS 2500 offers even smaller volume options, a smaller footprint, a stand-alone control and data logging system, and a lower per reactor price.

Features of the Micro Batch System 2500 include:

Three reactors with 5 mL or 10 mL volume, available in stainless steel, high-nickel alloys, titanium, zirconium, and other exotic materials
Small 10” x 12” (25 cm x 30.5 cm) footprint, with remotely located 4848-based controller for temperature/stirring control and pressure display.
Standard 3000 psi (207 bar, 200 bar for CE orders) @ 300 °C rating in T316 Stainless Steel
Trusted Parr seal geometry employing either a captive PTFE flat gasket and screw cap with compression bolts, or a self-sealing O-ring with tool-free screw cap closure
Standard head fittings to include safety rupture disc, pressure transducer, inlet/vent valve, and internal thermocouple
3-valve inlet manifold for control of gas addition
4848MBS Controller with:
PID control of common aluminum block heater
Monitoring of individual reactor temperatures (HTMS)
Monitoring of individual reactor pressures (PDMS)
Control of common stirring speed (MCM) via available PTFE- or Pyrex-encapsulated stir bars

Series 2500 Micro Batch System Specifications
Shaded bar indicates specifications that change within series.
Model Number	2500
Sizes, mL	5		10
No. of Reaction Vessels	3
Maximum Pressure	3000 psi (207, 200 bar for CE orders)
Maximum Temperature (internal)
with EP O-ring	150 °C
with FKM O-ring	225 °C
with FFKM O-ring	275 °C
with Carbon-Filled PTFE Flat Gasket	300 °C
Closure
with O-ring	Screw Cap
with Flat Gasket	Screw Cap (6 Compression Bolts)
Material of Construction	T316SS
Controller	Model 4848MBS
Analog Inputs	4 Temperature (3 vessels, 1 heater block)
	3 Pressure
	1 Motor Speed
Analog Outputs	1 Stirrer Speed
Digital Outputs	1 PID Temperature Control
Temperature Measurement	Individual Thermowell in Each Vessel
Heater Style	Aluminum Block
Heater Power Watts	450W
Block Mounted Thermocouple	Included
Stirrer Motor Type	Manual or Computer Controlled
Stirrer Style	PTFE- or Pyrex-encapsulated Magnetic Stirrer Bars
Electrical Supply, single phase
Volts, AC	115 / 230
Maximum Load, amps	4.6/ 2.3
Vessel Dimensions
Inside Diameter, inches	0.62		0.80
Inside Depth, inches	1.06		1.22
Weight of Vessel, pounds	3 (w/ Head-Mounted Valves)
Dimensions	Width, in.	Depth, in.	Height, in.	Weight, lb.
Main Unit	8	10.5	22	41
4848MBS Controller	13.5	11	10	14
Spare Parts Kit	2509M
