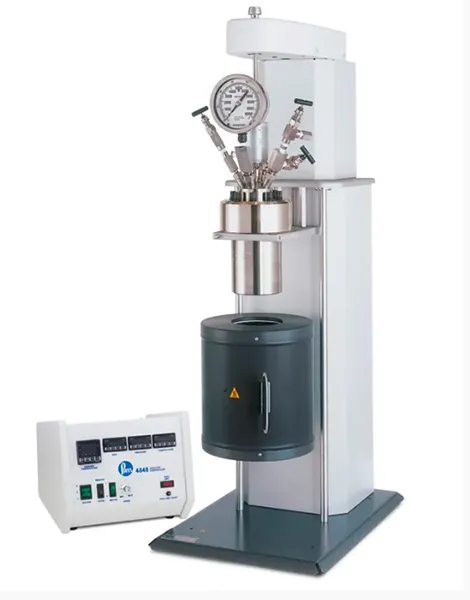

Series 4540 High Pressure Reactors, 600 & 1200 mL

Series 4540 High Pressure Reactors, 600 & 1200 mL

This series of stirred reactors has been designed for users who need higher operating pressures than the 1900 to 2900 psi offered by the General Purpose Reactors, but do not require the high operating temperatures provided by the Series 4570 High Pressure, High Temperature Reactors. The 4540 series reactors offer working pressures to 5000 psi (345 bar) at temperatures to 350 °C.

These vessels have been designed with outside dimensions comparable to the Series 4520 and 4530 Reactors so that they can use the same support system, stirrer drive and heater as these popular general purpose models. This provides not only an attractively priced, high pressure/moderate temperature system, but also reactors that can be interchanged with the 1 and 2 liter sizes. The thicker walls required for higher operating pressures reduce the volumes of these reactors to 600 and 1200 mL.

These reactors can be used in either the bench top or floor stand mountings. While the 1200 mL reactor is offered as a fixed head bench top model; it is too tall and too heavy to be handled comfortably on a standard height bench top. It is recommended that the floor stand support option should be selected unless the user has an adjustable bench top which will accommodate the overall height of the 1200 mL systems.

Series 4540 Pressure Reactor System Specifications
Shaded bar indicates specifications that change within series.
Model Number – Moveable Vessel	4544	—	4544A	—	4544C	4546C
Model Number – Fixed Head	4545	4547	4545A	4547A	—	—
Approximate Volume, mL	600	1200	600	1200	600	1200
Maximum Pressure (MAWP)	5000 psi (345 bar)
Maximum Temperature
with PTFE Flat Gasket	350 °C
Reactor Details
Mounting Style	Moveable or Fixed Head
Stand Type	Bench Top		Floor Stand		Moveable Cart
Closure	Split-Ring (8 Compression Bolts for Flat Gasket, no Compression Bolts for O-ring)
Valve Connections	1/4″ Male NPT
Magnetic Drive, Model No.	A1120HC6 General Purpose or A2140HC Footless
Maximum Torque	16 Inch-Pounds
Impeller(s), 6 blades	2 (1.75″ dia.)
Stirrer Motor	1/8 hp		1/8 hp		1/4 hp
Pressure Gage, Size	4.5 inches
Range	0-5000 psi (345 bar)
Temperature Measurement	Thermowell
Cooling Coil (optional)	Serpentine or Loop
Bottom Drain Valve (BDV) (optional)	N/A		1″ NPS		N/A
Lift Mechanism	N/A	Pneumatic	N/A	Pneumatic	N/A	N/A
Heater Style	Calrod
Heater Power, Watts	1000/1500	1500/2000	1000/1500	1500/2000	1300	1300
Electrical Supply
Volts, AC	115 / 230
Maximum Load, amps, 115 / 230	12 / 9
Cylinder Dimensions
I.D. x Depth, inches	3.25 x 4.7	3.25 x 9.8	3.25 x 4.7	3.25 x 9.8	3.25 x 4.7	3.25 x 9.8
Vessel Assembly Weight, pounds	4544 : 50 4545 : 53	65	4544A : 50 4545A : 53	65	50	61
Cylinder Weight, pounds	18	29	18	29	18	29
Reactor/Stand Dimensions
Width x Depth, inches w/o Controller	17 x 24		21 x 28		35 x 18
Height, inches	38	48	63		50
Weight, pounds	125	135	175	185	175	185
Spare Parts Kit	4549M
