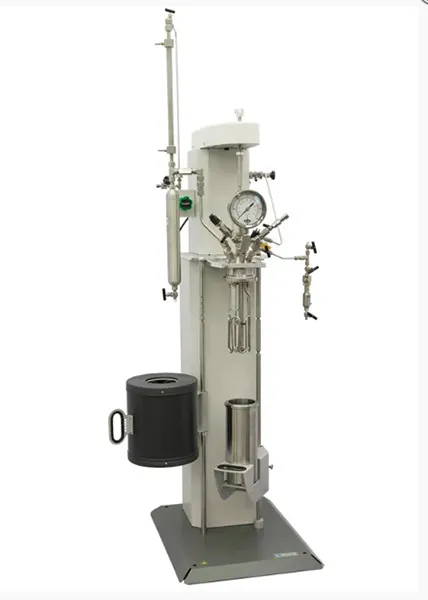

Series 4530 Floor Stand Reactors, 1 & 2 L

Series 4530 Floor Stand Reactors, 1 & 2 L

Series 4530 1-2L Floor Stand Reactors can be configured for polymer studies, modified to fit your needs, relocated when not in use, and are available in high pressure versions.

Reactors Configured for Polymer Studies. The floor stand reactors in this series are mounted on a sturdy stand which will accommodate larger stirrer drive motors and stronger power trains that are generally not available for the bench top models. With these options it is possible to provide the high torque and low stirring speeds required for work with polymers, slurries, and other mixtures with viscosity of 1 million centipoise and more. These mountings are also better suited for the installation of a drain valve in the cylinder bottom for convenient removal of the reaction mixture while it is still hot.
Reactors Requiring Extensive Modifications. Floor stand mountings provide a good base for reactor modifications and for the addition of accessories, such as: condensers, packed columns, special motors, custom heaters, jacketed vessels, automatic valves or regulators, and many other fittings. Both fixed head and moveable vessel designs are available. An optional pneumatic cylinder lift is available for fixed head models.
Reactors that Need to be Moved. These floor stand reactors are designed for use in an area where a bench top is not available. Users who wish to move the reactor to storage when not in use, will appreciate the moveable cart design of the Series 4531 and 4532.

These reactors are available with an FKM O-ring seal for operating temperatures to 225 °C, and FFKM O-ring for temperatures to 300 °C, or with a flat, PTFE gasket for operating temperatures up to 350 °C maximum.

High Pressure (HP) versions. These floor stand reactors are now available in an HP version up to 3000 psi (200 bar) at 300 °C.

Series 4530 Pressure Reactor System Specifications
Shaded bar indicates specifications that change within series.
Model Number	4531	4532	4533	4534	4535	4536
Approximate Volume, mL	1000	2000	1000	2000	1000	2000
Approximate Volume for HP Models, mL	970	1900	970	1900	970	1900
Maximum Pressure (MAWP)	1900 psi (131 bar)
Maximum Pressure for HP (MAWP)	2900 psi (200 bar)
Maximum Temperature
with FKM O-ring	225 °C
with FFKM O-ring	300 °C
with PTFE Flat Gasket	350 °C
Reactor Details
Mounting Style	Moveable		Fixed Head		Moveable
Stand Type	Cart		Floor Stand		Floor Stand
Closure	Split-Ring (6 Compression Bolts for Flat Gasket, no Compression Bolts for O-ring)
High Pressure Closure	Split-Ring (12 Compression Bolts for Flat Gasket, no Compression Bolts for O-ring)
Valve Connections	1/8″ Male NPT
Magnetic Drive, Model No.	A1120HC General Purpose or A2140HC Footless
Maximum Torque	16 Inch-Pounds
Impeller(s), 6 blades	2 (2.28″ dia. / HP: 2.00″ dia.)
Stirrer Motor	1/4 hp variable speed
Pressure Gage, Size	4.5 inches
Range	0-2000 psi (138 bar) / HP: 0-3000 psi (207 bar)
Temperature Measurement	Thermowell
Cooling Coil (optional)	Serpentine
Bottom Drain Valve (BDV) (optional)
Standard Pressure (1900 psi)	3/8″ NPT
High Pressure (2900 psi)	1/4″ NPT
Lift Mechanism (optional)	N/A		Pneumatic		N/A
Heater Style	Calrod
Heater Power, Watts	1300	1300	1000 / 1500	1500 / 2000	1000 / 1500	1500 / 2000
Electrical Supply
Volts, AC	115 / 230
Maximum Load, amps, 115 / 230	12 / 9
Cylinder Dimensions
I.D. x Depth, inches	4.0 x 5.4	4.0 x 10.5	4.0 x 5.4	4.0 x 10.5	4.0 x 5.4	4.0 x 10.5
I.D. x Depth, inches for HP	3.75 x 5.4	3.75 x 10.5	3.75 x 5.4	3.75 x 10.5	3.75 x 5.4	3.75 x 10.5
Vessel Assembly Weight, pounds	30	36	33	38	30	36
Vessel Assembly Weight for HP, pounds	35	43	36	44	35	43
Cylinder Weight, pounds	8.9	13.7	8.9	13.7	8.9	13.7
Cylinder Weight for HP, pounds	11.3	18.4	11.3	18.4	11.3	18.4
Reactor/Stand Dimensions
Width x Depth, inches w/o Controller	35 x 18		21 x 28		21 x 28
Height, inches	50		63		63
Weight, pounds	200	215	225	240	225	240
Spare Parts Kit	4539M
