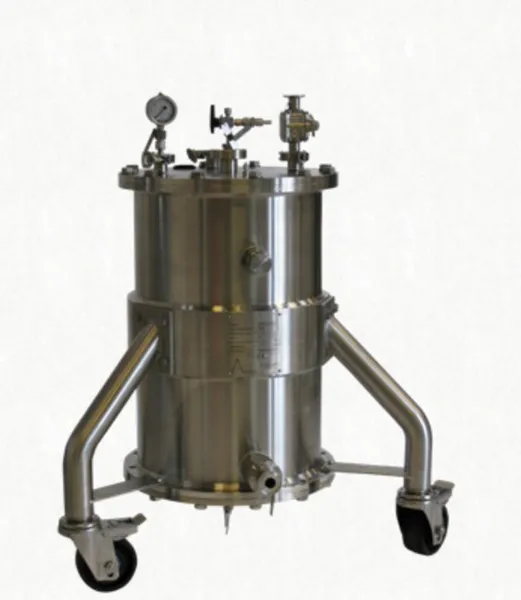

MPLC Columns 10-30 bar

MPLC Columns (10-30 bar)

Peak MPLC DAC columns are designed for high performance. Columns have variable bed length and are designed for low pressure applications.
The columns are designed with internal hydraulic compression, which makes the construction space saving. Especially, when beds are packed, this is a strength due to high mobility, e.g. through door openings.
Same distributor and frit construction in top and bottom of the column to allow both up- and down flow directions and to ensure an even distributed flow through the packed bed.
Easy handling and service with focus on safety.

Specifications
Column diameter 100-1600 mm.
Packed bed length 50-1000 mm.
Design pressure up to 30 bar.
Design flow according to customer requirement.

High performance packing
Special designed distributor design ensure even flow across the bed.
Slurry inlet valve for quick and easy packing.
Slurry outlet valve for quick and easy unpacking, without opening the column.
Repacking without opening the column.
Reproducible packing each time.
The packing can be automated.

Sanitary design
Inlet and outlet valve in sanitary design.
Connections are sanitary design.
Minimized dead volumes inside columns allows complete CIP.
