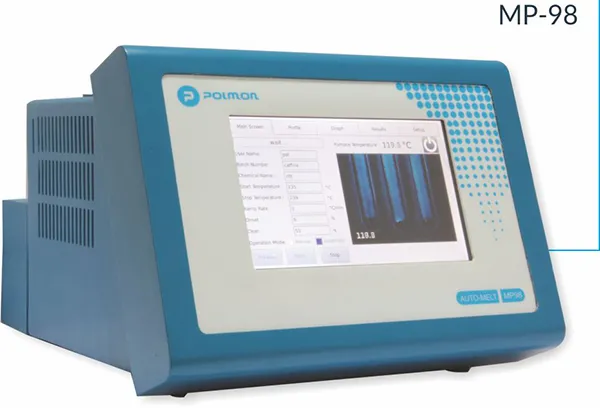

AUTO MELT MELTING POINT APPARATUS

AUTO MELT MELTING POINT APPARATUS

Computer vision-based automaticmelting point detection

• Automatically detects melting point of up to 3 samples simultaneously
• In-built camera records the melting process
• 7” colored touch screen LCD replays melting video instantly
• 100 results with video can be stored in internal memory
• Real time graph is visible after completing the sample text
• Results can be copied to USB drive or accessed over LAN
• Wide measurement range from RT to 400 °C
• 12 user programmable profiles for Quick Start
• User selectable PID-controlled accurate temperature ramping from 0.1 to 20 °C/min
• Fully guided four point calibration
• Accuracy:

  – +/- 0.3 °C up to 200 °C
  – +/- 0.4 °C from 200-300 °C
  – +/- 0.6 °C from 300-400 °C
