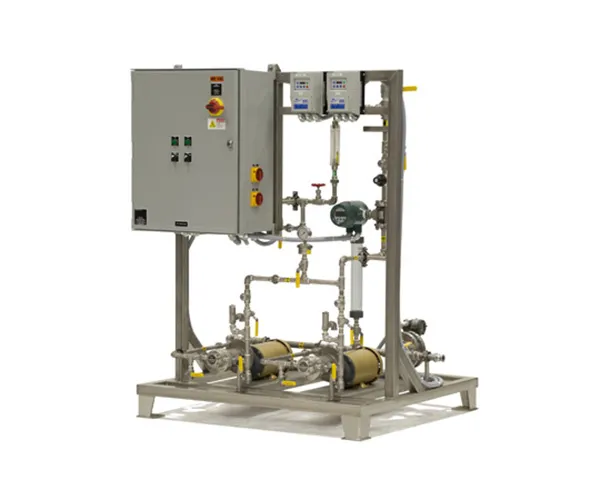

Gear Pump Skids

Gear Pump Skids

The ProFlow DMS and TMS Series metering pump skids are a cost effective alternative to expensive on-site pump installations.

These compact, reliable skids offer precise metering of fluids. With pressure capabilities in excess of 300 PSIG, they offer a solution for most metering applications.

Gear Pump Skids are available in standard duplex and triplex configurations. These systems are excellent for use with viscous non-abrasive products. They range in standard sizes from 1 GPM to 30 GPM and discharge pressures to 300+ PSIG. Pumps from 1-20 GPM are close coupled design, with no coupling alignment required. Standard skids are supplied with variable speed drives in NEMA 4 enclosures. These skids feature compact designs, stainless steel frame, and piping, magnetic flow meters. These skids are pre-piped, pre-wired and ready to operate. Each pump is fitted with a pressure relief valve.

Standard options available include a water dilution system, PID controllers, calibration columns and electrical disconnect switches.

A full range of accessories is available including tanks, agitators and filters.
