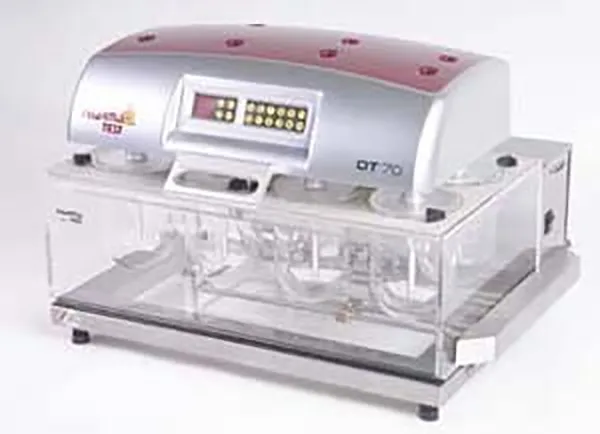

Manual Dissolution Tester-PT-DT70

PT-DT70

6+1 position Manual Dissolution Tester

The PT-DT70 is the low head, manual flip back dissolution tester from Pharma Test. It provides a space saving, low cost entry into dissolution testing. Whether for a new laboratory or to meet tough budget requirements, the PT-DT70 offers a lot of instrument for a comparatively modest cost. This instrument offers seven stirred positions as well as a pneumatically supported lift off top for easy access to the dissolution vessels.

The test vessels are placed in 2 lines (4+3) and it is easy to remove spent samples and refill with solvent by lifting up the drive housing. To insert samples and withdraw solution 7 holes and guiding tubes are placed inside the top cover of the instrument. Simply place your tablets next to the holes and introduce when ready for test start. For easy sampling use the PT-MDS Manual Sampling System which includes sampling tube – inline filter and a 10 ml. disposable syringe. Program sampling sequences and get informed by a Beeper for action. Also the PT-DT70 is already equipped with all necessary interfaces to connect a sampling system for test automation. Interface for installation of a DATA-LOGGER PT-DL1 is built-in. The PT-DT70 is in full compliance with the relevant USP<711/724>, EP<2.9.3/4> and Japanese Pharmacopoeia.
Other instruments of the Pharma Test dissolution instrument series are the PTWS100, PTWS 310 for 1 and 2 litre vessels, PTWS 610 (6+2), PTWS 1210 (12 + 2) and the PTWSD610 (2 x 6 + 2) and the 5 ltr. vessel instrument PTWS 4000.
