Bottling Machines
Bottling Machines
Bottling Machines (Rinser, Filler, Capper) For Mineral water, Juices, Cabonated Drinks, Milk, Pesticides, Etc
Singals offers a wide range of Semi-Auto and Automatic bottle-packaging machine to
All production capacity

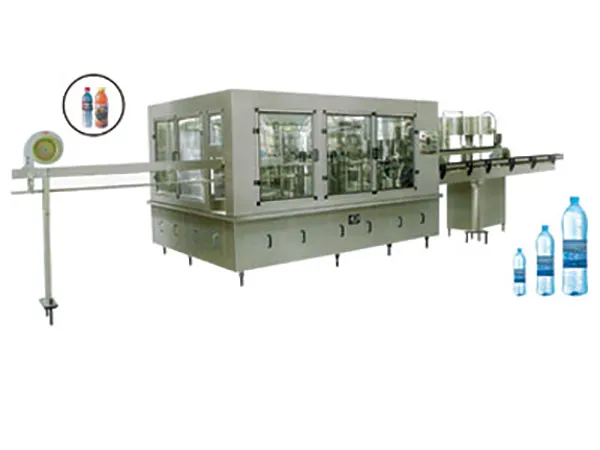

Automatic 3 in 1 machine is Fully-Automatic Bottling Line for Juices, Drinking waters, Wines, Liquids etc. in Pet Bottles
Bottled water Rinsing, filling and Capping machine, also known as packaged drinking water filling machinery is widely used to pack drinking water filling, mineral water filling bottled water filling,spring water filling,juice filling, bottle filling etc.
Singal,s offers various types of bottled water filling machines for 20BPM,30BPM,40BPM,60BPM,100BPM output speed.
OPERATIONAL DESCRIPTION:
The rotary type machine consists of Air Conveyor for feeding the bottles for Rinsing, Filling and Capping. The bottles are held on the neck and the body is guided in spacers. Machine consists of Rinsing stages,Filling stages and Capping station. The rinsing and filling is controlled by Rotation speed, The Rinsing Jets are pressurized by pump. A rotary Automatic cap feeder is mounted on the machine and capping is done by Electro-Mechanical Capper.
Model
|
RBT 8-8-3
|
RBT 16-12-6
|
RBT 18-18-6
|
Heads of Washing/filling /capping
|
8-8-3
|
16-12-6
|
18-18-6
|
Production Capacity (B/h)
|
1500-2000
|
3000-3600
|
5000-5500
|
Suitable Bottle Diameter
|
Φ=50-105
|
Height of Bottle
|
H=125-320
|
Motor power (kw)
|
1.5 Kw
|
2.5 kw
|
3.5 kw
|
Size (L x W x H) mm
|
2110 x 1520 x 2400
|
2300 x 1850 x 2400
|
2600 x 1850 x2400
|
Weight (kg)
|
2500
|
3000
|
3500
|
