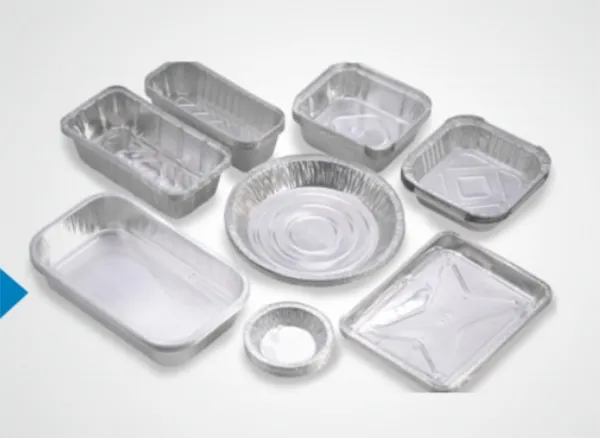

SEMI RIGID CONTAINERS STOCK
SEMI RIGID CONTAINERS STOCK
RAVIRAJ FOILS LIMITED manufactures light gauge converter foil with the following general specification. The final product specifications made as per agreed contract with the customers.
Chemical Composition:
Si
Fe
Cu
Mn
Mg
Cr
Ti
Zn
AL
Max. 0.60
Max. 0.70
0.05 0.20
1.0 1.5
Max. 0.1
-
Max. 0.05
Max. 0.10
Min Remainder
Alloy/Temper:3003-H22/H24
Thickness(mm):0.038-0.200
Thickness tolerance:Single measurement ± 8%Mean Measurement ± 4%
Width Tolerance:± 1 mm
Lubrication:According to customer order
Surface:Both side bright
Telescope:Max. 3 mm
Type of Core:Steel /Aluminium
Core ID:152 mm/76 mm
Reel OD:Max. 800 mm
Splice:Maximum 1 joint, 80 % material joint free
Identification:Each reel is identified with a ticket having Product name, reel number, specification.
Test Certificate(COA):Test certificate incorporates (a) Thickness (b) Width (c) UTS (d) Elongation and any other information sought by the customer can also be given.
Total heavy metals, (Pb+Cr+Cd+Hg) are below 100 PPM
