FLARE THRU HOSE

FLARE THRU HOSE

FLARE THRU HOSE

The ST-Flare Thru Hose is more than just a low pressure steam hose

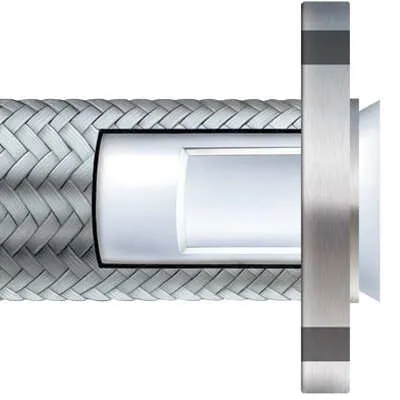

Smoothbore PTFE Lined Hose Flare Thru with Stainless Steel Braided Cover

TUBE: Seamless white PTFE
COVER: Braided stainless steel
TEMPERATURE: -20°F to 350°F
AVAILABLE FITTINGS: Flare thru Tri-Clamp®
Flare thru 150# flange

Part Number

Hose ID Inch

Hose OD Inch

Bend Radius Inch

Max. Working Pressure @ 70°F PSIG

Vacuum Rating @70°F in. Hg.

Weight per FT

12RFSTFT*

0.75

0.88

8.2

275

FULL

0.20

16RFSTFT

1.00

1.19

12.0

275

FULL

0.50

*Available in 150# flange style only

Features

  • Outer cover is stainless steel braid overwrap
  • Smoothbore PTFE inner core
  • No bacteria traps with flared flanged assembly
  • Non-stick contact surface will not contaminate product
  • Withstands high velocity and pressure surges
  • Resists moisture
  • Autoclavable

Applications

  • Food processing
  • Pharmaceutical processing
  • Cosmetics
  • Hot CIP solutions
  • Chemical products
  • Low pressure steam

Types of connections

  • Flare Thru Style
  • Flared TC Style
  • Flared Flange
