Resodyn Acoustic Mixers

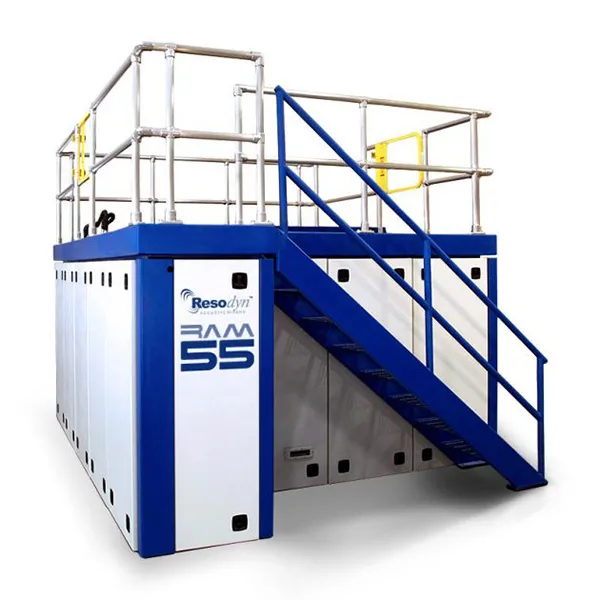

RAM 55

RAM 55

ResonantAcoustic^® Mixing at a 55 Gallon Capacity

Resodyn Acoustic Mixers’ largest batch scale production mixer, the RAM 55 Pharma, brings the awesome power of ResonantAcoustics^® to 55 gallon/420 kilogram scale to drastically increase productivity and expand capabilities. RAM 55 Pharma is built on the same flexible and universal processing platform as every other RAM device from 300 grams to 420 kilograms. Options like vacuum, temperature control, and vessel specialization match the right processing functions and exceed the required performance beyond traditional technologies.

Key Processing capabilities

• Mixing and processing up to 924 lb (420 kg) of any combination of
  • Solids/Powders – from nano-scale, up
  • Liquids/Gases
  • Viscous/Slurry materials
• Coating, Milling, Grinding Processes
• On-board control of processing accessories
  • Automatic vacuum system
  • Jacketed vessel temperature control
• Develop, store, and secure up to 100 recipes
• Monitor mixing parameters in real-time
• Download processing data for analysis
• Adaptable to Resodyn Continuous Acoustic Mixing technology
  • Feeder Systems
  • Continuous processing chamber stack
  • Order of magnitude higher processing capacity

RAM 55 Pharma Features

• Up to 924 lb (420 kg) of mix capacity in 55 gallon mixing vessels
• Application specific mixing vessels with many options
• Intense, but gentle acoustic mixing for rapid, highly repeatable, ultra-high quality results
• Digital control, programming, recording of all critical and measured functions
• Jacketed Mixing Vessel provides optional temperature control from 302°F (150°C) heating to 0°F (18°C) cooling
• Vacuum equipped Mixing Vessel option capable of applying up to 29 inHg or 10 Torr
• Integral gantry system for dedicated material handling of vessels and accessories (optional)
• Individually specified system configurations for fast implementation and high-performance results
