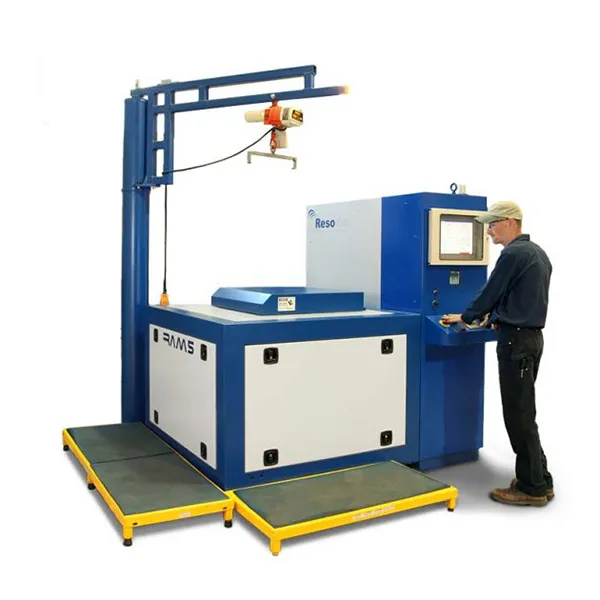

RAM 5

RAM 5

The Power of RAM at Production Scale

Resodyn Acoustic Mixers’ production scale mixer, the RAM 5, brings the awesome power of ResonantAcoustics^® to larger scale to drastically increase productivity and expand capabilities. RAM 5 is built on flexible and universal processing options like vacuum, temperature control, and vessel specialization. Each RAM 5 configuration matches the right processing functions and exceeds the required performance beyond traditional technologies.

Key Processing capabilities

• Mixing and processing up to 80 pounds (36 kilograms) of any combination of
  • Solids/Powders – from nano-scale, up
  • Liquids/Gases
  • Viscous/Slurry materials
• Coating, Milling, Grinding Processes
• On-board control of processing accessories
  • Automatic vacuum system
  • Jacketed vessel temperature control
• Vacuum enabled chuck accepts 5 gallon, industrial mixing bucket vessel
• Develop, store, and secure up to 100 recipes
• Monitor mixing parameters in real-time
• Download processing data for analysis
• Adaptable to Resodyn Continuous Acoustic Mixing technology
  • Feeder Systems
  • Continuous processing chamber stack
  • Order of magnitude higher processing capacity

RAM 5 Features

• Up to 80 lbs. (36 kg) of mix capacity in extendable 5 gallon mixing vessels
• Application specific mixing vessels with many options
• Intense, but gentle acoustic mixing for rapid, highly repeatable, ultra-high quality results
• Digital control, programming, recording of all critical and measured functions
• Jacketed Mixing Vessel provides optional temperature control from 302°F (150°C) heating to 0°F (18°C) cooling
• Vacuum equipped Mixing Vessel option capable of applying up to 29 inHg or 10 Torr
• Integral hoist system for dedicated material handling of vessels and accessories (optional)
• Individually specified system configurations for fast implementation and high-performance results
