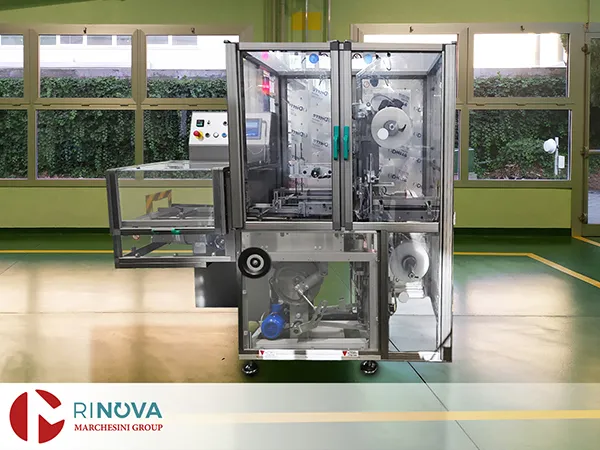

F 40 Multipack stretch banding machine

F 40 Multipack stretch banding machine

The product coming from one single row, is grouped into the requested pattern and banded with polyethylene band.

Main Characteristics

• Automatic intermittent motion machine, with mechanical movements;
• Security clutch and cam controls;
• All the movements are controlled by security devices: in case of overloading the machine will stop and the cause will be signalized on Display;
• Reduced dimensions and solid frame. Base in sealed and painted carpentry with motor drive;
• In the machine design, GMP norms have been followed to meet the pharmaceutical packaging requirements, allowing an easy access for maintenance, cleaning and size changeover purposes;
• The machine can be supplied in symmetric version, in-line or 90 degrees feedings.

Banding and Sealing Section

• The product is introduced against the film by a pusher driven by cams, defining the bundle wrapping;
• A peculiar feature of the sealer clamping device allows a high quality seal in terms of stretching resistance, as well as surface result;
• Bundle is kept in an orderly manner during sealing operations;
• Sealer temperature is constantly checked by thermo-regulators;
• A suitable sealer cooling system allows working even at a very high speed.

Reel Holder Section

•     The wrapping film will be unwinded by two motorized reels;
•     Adjustable film stretching around the bundle;
•     In case of film breaking, the machine will stop in emergency with proper signal on Display;
•     Two sensors indicates the reel ending.

Controls

•     Different sensors allow to know the status of the main machine parts, such as product missing;
•     Speed adjustment during changeover size.

Installed Safeties

• Total safety guard, in Methacrylate, integrated in the machine frame. Microswitches on all the open doors, with machine stop in emergency and compressed air discharge;
• Main movements are protected and controlled by proximity with indication on control panel and machine stop upon emergency conditions. On restore performed, a reset will be necessary and the machine will return automatically in the normal working position.

Machine complete with:

•     Easy size change over through hand wheel with digital indicators and millimetric scales;
•     One set of size parts suitable to collate and wrap one type of product.
