KEY FEATURES

• Maximum number of blades in contact with body at one time without affecting throughput.
• Good throat opening at valve entry allowing high pocket filling efficiency.
• Minimum clearance at rotor tips and sides with body.
• Robust body adequately stiffened to prevent distortion.
• Heavy shaft diameters minimising deflection.
• Outboard bearings for non-contamination.
• Packing gland type seals.
• Maximising valve speed to 25 rpm -prolonging life, ensuring good throughput.
• Precision machining of components.

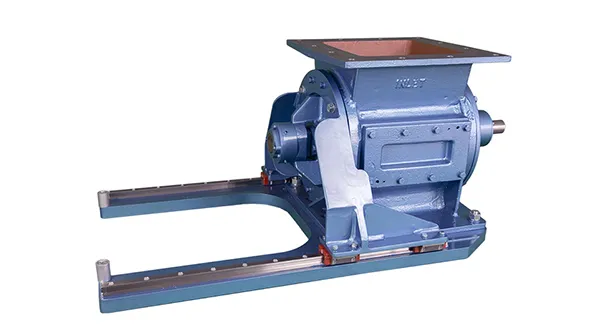

Rotolok offer an Easy Release rotary valve designed to allow just one person to maintain and easily clean the rotor. Being on rails saves on production downtime and reduces man hours. An inspection door can also be fitted in the valve body that provides access and surveying of the valve internals to check for wear.

Construction

Robust bodies and end covers can be manufactured from cast iron to stainless steel with open or closed rotors built to suit industry needs. Typical sizes range from 85mm (3.4 in) to 500mm (20 in) with other sizes made to order.

SPECIFICATION

The general market place covers Cyclones, Bag Houses and Gravity Feed applications with pressures around +/- 3 psi

• BODIESCast Iron, Stainless Steel or Aluminium precision bored.
• END COVERSCast Iron, Stainless Steel or Aluminium spigot located in body for concentricity.
• ROTORFabricated Mild or Stainless Steel.
• BEARINGSSealed-for-life ball type rigged outboard.
• SHAFT SEALGland type with PTFE packing.
• DRIVEMTEFC geared motor unit side wall mounted to valve body and complete with taper lock sprockets and chain drive all in an enclosed guard.
• VALVE SPEEDSizes 150 & 200 – 23 RPMSizes 250 & 300 – 23 RPM
