SAIMACH PHARMATECH PVT. LTD

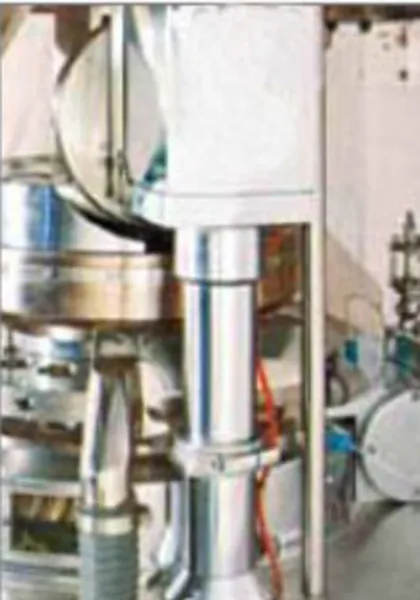

SINGLE SIDED ROTARY TABLETING MACHINE cGMP

It is a square GMP model/single sided rotary tablet Press/ promising unmatched quality for small batch Production. Safety/enhanced performance/clean ability and ease of operation is its most significant features. The suitable model can be selected based on the tooling and output requirement from the 16, 20 & 12 station with “D”, “D” & “SPECIAL” tooling respectively. The 12 station model is available with “SPECIAL” tooling and tunnel type cam track having maximum tablet diameter of 40mm & maximum depth of fill of 30mm.

 SALIENT FEATURES :  cGMP

• In compliance with cGMP guidelines
• Turret of SG IRON 500/7 Graded Casting
• Robust with high quality Engineering
• Small batch production
• Safe/ Simple to operate and easy to maintain
• Higher Turret RPM upto 42
• Main Moter AC Variable Frequency Drive (optional)
• Force Feeder (optional)
• Aluminum covers for Turret teeth

 SALIENT FEATURES : Standard

• Hand wheel provided
• Turret of SG IRON 500/7 Graded Casting
  Main Operating Pressure up to 10 Tons (For 12 Station - Up to 12 Tons)
• Sturdy and easy fit Feed Frame (Gravity Feeder) of Gun Metal
• Central oil lubrication system with manual hand pump
• Cam tracks and pressure rolls made out of alloy steel for maximum wear resistance and long life
• Worm is made of Phosphor Bronze
• Ease of operation and maintenance
• Maximum 30 RPM of Turret
• Variable speed pulley drive (For 12 Station Fixed Pulley with Two different speeds)
• Mechanical Overload Pressure release arrangement
