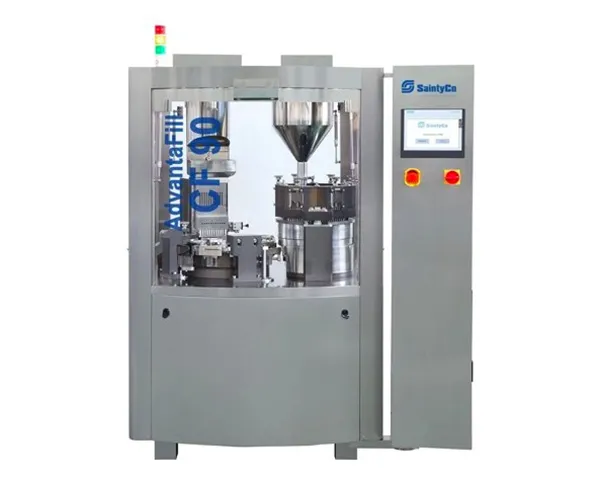

Automatic Capsule Fillter (PrimaFill CF-90)

Automatic Capsule Fillter (PrimaFill CF-90)

Capable of speeds of up to 90,000 capsules per hour, this machine has the potential to become a key ingredient in your 2018 profit plan.

AdvantaFill CF90 Fully Automatic Capsule Filling machine rated at 90,000 cph. Fully operational, well performance for nutraceutical and supplement product.

Includes:

01 format tooling
Siemens PLC with Color touchscreen controls
Pneumatic powder loading system(option)
Pneumatic Empty loading system (option)

Construction:

#304 Stainless Steel Enclosures & Tabletop
Four Heavy Duty Acrylic Doors
#304 Stainless Steel Turret
All FDA Approved Contact Parts
Mounted on Casters & Leveling Pads

Drive System:

AC Variable Speed Frequency Control
Clutch/Brake System with Torque Limiter for Safety

Capsule Orientation/Feeding & Separation Stations:

#304 Stainless Steel Capsule Hopper with Level Sensor Control
Complete Capsule Orientation System
Complete Capsule Separation System
Redesigned without metal to metal contact

Powder Feeding/Tamping System Station:

Five Tamping Stations that Provides the Widest Variety of Filling Capabilities in the Industry
One Transfer Station to Remove Pre-Measured Product to Capsule to within +/- 1%
#304SS Powder Hopper with Automatic Auger Filling System
#304SS Dosing Chamber & Disk with Level Control Sensor

Main Segment Drive Assembly:
