Storage & Dispensing Bins

Storage & Dispensing Bins

Schematic has designed and manufactured a wide range of portable material storage bins, drums and containers in a variety of sizes/capacities.

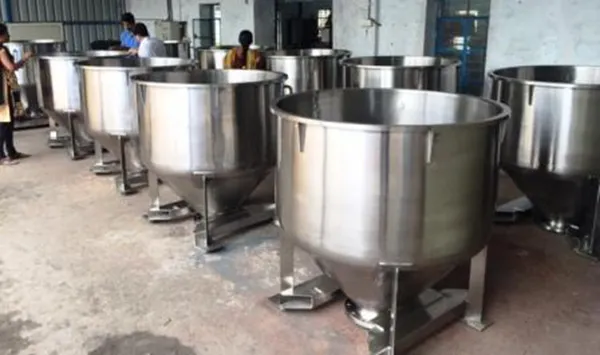

We have supplied designs from small 300L bin capacity to medium 1000L and large 1500L capacities. The photo to the right shows a batch of 10off 1000L bins supplied without lids for a paint application.

We offer solutions in a range of materials from 304 stainless steel (DIN 1.4301) to 316L (DIN 1.4404) or to suit customer specific requirements, all manufactured to cGMP and fully welded, polished and buffed.

Design Features

• Supplied without Lid (Integral or detachable lid optional)
• Rugged 316 Stainless Steel build with fully welded, large radius and polished corners and surfaces (cGMP)
• Bottom Integral Butterfly Valve
• Optional integrated Weighing Scale
• Caster wheels on each leg for ease of operational movement

Operational Benefits

• Clear visibility of contents during operation and cleaning
• Operator safety - fully interlocked lid (where required)
• Ease of Cleaning - polished/buffed surfaces to cGMP standards
• Opening of the Bin Lid can be alarmed, where required, in case of unauthorised breach

Technical Specification

• 304 Stainless Steel construction as standard (Other materials are optional)
• Machined container / bin rim for optimised lid sealing

Supply Options

• 316 and 316L Stainless Steel material construction (optional)
• Unauthorised Lid opening breach alarm (optional)
• Interlocked Lid system (optional)
• Transfer System designs to suit application (optional)
• Manual discharge valve (Automatic optional)
