MediScan

MediScan

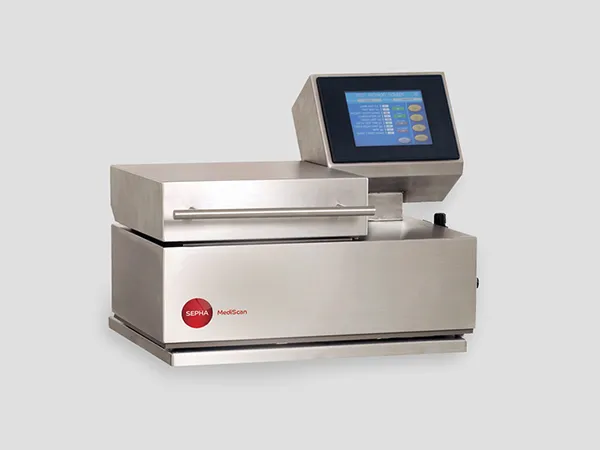

The Sepha MediScan is a tool-less, non-destructive leak detection device for non-porous pouches, sachets and medical device packaging.

The Sepha MediScan is a package leak test device developed to leak test flexible packaging. The machine is a tool-less, non-destructive leak detection device for non-porous pouches, sachets and medical device packaging.

• Pouches
• Sachets
• Medical device packaging

The machine incorporates leak detection technology and software, developed by Sepha, that is utilized on a daily basis by top global pharma companies to leak test flexible packaging and ensure product packaging integrity.

Features

• Non-destructive seal integrity and leak detection device
• No tooling required, making it highly flexible across several pack types and sizes
• Capable of detecting weak seals, channel leaks and holes down to 10μm (pack dependent)
• Table top device
• Capable of handling non-porous packages up to 100mm x 200mm x 250mm
• Easy operator use via touch screen interface and easy load chamber
• Capable of storing multiple test methods for up to 30,000 product types
• User defined password protection ensuring multiple operator use
• Fully validated system
• Production of objective and repeatable results
• Test results can be printed, exported via USB (x2) or integrated into local quality control system via Ethernet cable
• Fast, efficient test speed
• Audit data available and fully 21 CFR part 11 compliant.
• Active Directory and OPC connectivity available on request

Technical Spec

• Pack Type
  Sachets, pouches, bags, MAPs and flexible packaging (non-porous)
• Test Area
  Up to 250mm (L) x 200mm (W) x 100mm (D)
• Test Cycle
  From 20 seconds per test cycle
• Operation
  Semi-automatic
• Machine Construction
  304 Stainless Steel Casework
• User Interface
  10″ HDMI (800×480) LCD Display
• Utilities
  Electrical: 110/230V Single Phase AC 50/60 Hz / Air: Min. 200L/min at 0.6Mpa [ISO8573-1:2010 CLASS 2]
• Configuration
  2 x USB ports, 1 x Ethernet port
• Tooling Changeover
  No tooling required.
• Machine Dimensions
  400mm(L) x 700mm (W) x 500mm (H)
• Machine Weight
  90kg
• Shipping Weight
  190kg
• Warranty
  Supplied with a 12-month warranty. (Extended warranties are available for additional support).
