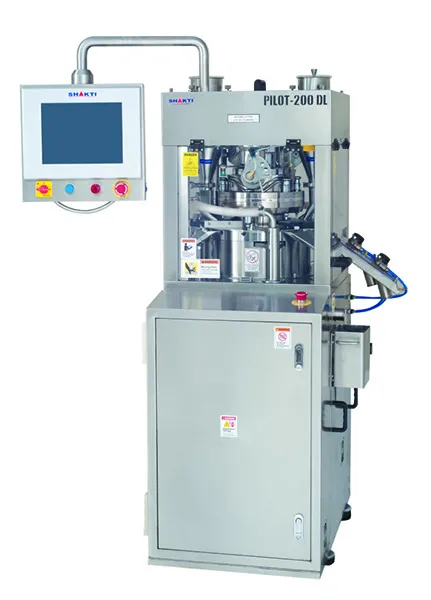

Bi – Layer Tablet Press Intrumented (GMP) (Pilot 200)

Bi – Layer Tablet Press Intrumented (GMP) (Pilot 200)

Lab Press – PILOT 200 DL is a High-Tech Double Layer & Mono layer Rotary Tablet Press is essential for R & D and small batch production. This Single sided R & D Double Layer Tablet Press fully conforms to GMP and the safety requirements, featuring versatility with a quick change of tooling.

For the suitable adjustment during double – layer tablet development, fully independent weight, height and hardness system are used for both the first and second layer. The Turret is driven centrally by a motor and Reduction gear box. The turret speed is adjusted by A.C. frequency drive. It’s available in Regular Model D’ Tooling or B’ Tooling
Multi Tooling – D+B & DB

System Features

• The speed of the Turret is adjustable through ACVF variable drive system.
• The Speed of the Force feeder Adjustable with A.C.V.F. Variable drives system.
• All Electrical Controls on Touch Screen.
• Excellent accessibility for quick cleaning and product conversion.
• Turret – Central drive Mechanism with Powerful Gearbox.
• Double Compression Mechanism for Double Layer Tablet.
• Dust Suction Nozzle Arrangement.
• Tablet Thickness & Weight adjustment controls outside compression zone.
• All critical parts made in CNC machines.
• Turret Die plate & material contact parts are made of SS 316
• Outside controls for quick setting of Tablet thickness & Weight adjustment.
• Gravity feeding system for Easy charging of granules & minimum wastage of material.
• Force Feeder system for First & Second layer.
• First layer Pneumatic ejection for checking weight.
• Totally enclosed. GMP model.
• All Fasteners are of SS 304.
• All Guards magnet catch with Stainless steel Covers.
• All Bakelite Knobs Fixed with stainless steel threaded studs.
• Lower cam track can change without lifting Turret & no need of any setting.
• Charging Hopper with Powder Level window and material stop Cock facility.
• Turret Guard with full height to cover wiper seal area.
• Utilizes “TSM” or “EU” “B”, “D” and “BB” standard tool configurations.
• Lower roll carrier Oil tray with SS 304 material.
• All Electrical Components are CE approved.
• Lower Punch Wiper seal with NT6/a is an Acrylonitrile Butadiene Rubber of Hardness Shore ‘A’ 88°, Temp range 40°C to 100°C, surface roughness static – 0.8 µm with corrosion resistant metal ring houses NBR element for smooth Lower punch operations.
• Minimum 3 mm thickness tablet can be press.
• Base Plate inside/outside Cladded with SS 304.
• Turret & Cam Tracks Processed by Electrode less Nichol Plated (ENLP) for Long life.
• Turret & Cam Tracks Processed by Electrode less Nichol Plated (ENLP) for Long life.
• Special R & D Purpose machine with Combined “B”, “BB” & “D” Tooling available.
• Pressure Roller & Pins are processed with hard heat-treatment.
• Low noise level.
• Upper guard & Lower side guard interlocking for operator’s safety.
• Miniature Circuit Breaker for over load Protection as a Safety Feature.
