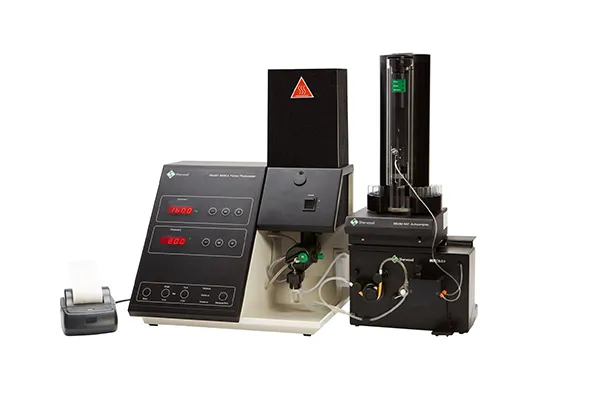

Model 420Cs

Model 420Cs

Product Overview

The Model 420Cs is Sherwood’s newest addition to the Flame Photometer product line. Evolved from the well-established Model 420, the Model 420Cs provides a precision (%CV) ≤ 0.5, now achievable with all new Dual Channel models: i.e. the Model 420 & Model 425.

Unique to the Model 420Cs is addition of a Caesium reference channel. This enables the analyst to work with Caesium or Lithium as an internal reference. The Model 420Cs’ additional internal reference option provides greater flexibility; operators have the ability to choose the internal reference element based on the sample matrix considerations or existing procedures developed for discontinued instrumentation such as the IL 943 Flame Photometer.

A practical example where the Caesium option is beneficial is analysis of Lithium in clinical samples while still being able to benefit from the improved precision achieved by use of an internal reference.

Highlights

• On board firmware with blanking, calibration and sample routines.
• Simultaneous measurement of two out of three elements: Sodium, Potassium and/or Lithium.
• Linearised Sodium response over the expected clinical Sodium concentration range (1 in 200 sample dilution).
• Internal reference facility for improved precision.
• Automatic flame ignition and optimisation.
• Safety features including optical flame and low air pressure detection for fuel gas shut off.
• Two digital displays for calibration and analysis data of each channel; analogue outputs for use with chart recorders and some on-line analysers.
• A “no tools” maintenance approach allowing easy access to mixing chamber and burner assembly.
• RS232 for data output to a serial printer.

Items Included

• Model 420Cs 2-Channel Clinical Flame Photometer
• Atomiser Stainless Steel Complete
• Power Supply Unit Universal, IEC
• Tube, Drain
• Tube, Pvc Reinforced, 2 Metres
• Tube, Gas 6.3 Mm Id, 2 Metres
• Tube, Atomiser Inlet
• Solution; 140.0, 5.00 & 1.50 mmol/L Na, K & Li (100 Ml)
• Solution, 10000 PPMCaesium (100 Ml)
• Solution, 3 Molar Lithium (100 Ml)
• Wire, Atomiser Cleaning Pk3
• Lead, Instrument To Printer/PC
• Lead, Mains 2 Metres Black 10A IEC, Plain (No Plug)
• Operator Manual
