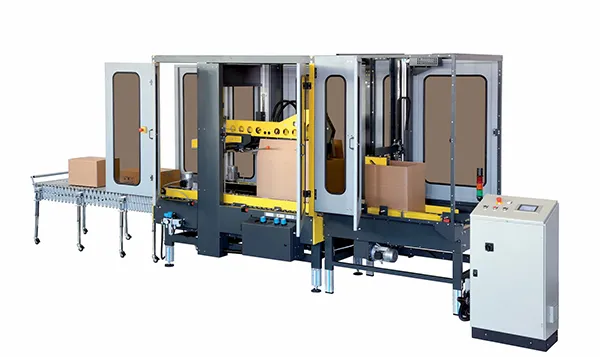

SM44HS Automatic Case Sealers

SM44HS

Automatic Case Sealers with Random Adjustment

SM44HS is a Range of Automatic Case Sealers with Random Adjustment.

Machines able to adjust themselves on the various box sizes and close the boxes top flaps automatically (without operator).

SM44HS model is an automatic “Random” case sealer: it means that the machine is able to adjust itself on the various box sizes.

The machine applies automatically two self-adhesive tape stripes on the upper and lower boxes middle line. Utilization of SM44HS is intuitive, simple and fast. Installation is extremely fast and thanks to the caster with brake (option), fixed on the four legs, easily movable all over the workplace.
A system, located on the top part of the taping head construction, folds automatically the 4 flaps of the box. By doing this movement, the user can work faster and more efficiently as he has all his hands free to fill boxes or do any other action.

Key features

• Automatic four-flaps-folder device
• Side drive belts (2 x 75 mm width each)
• Drive belts speed 30 m/min.
• 2 motors kW 0,9 each
• Side pressure rollers to control flaps box closing
• Electro/pneumatic detector system boxes height
• 2 x K11R taping unit – 50 mm width
• Low/brake tape device
• Side safety protections connected to electro-pneumatic disconnection switches
• Safety protection grids
• Control panel for pneumatic adjustment
• Integrated control panel
• Average air pressure consumption: 350 Nl/min approx.
• Production capacity up to 800 boxes/hour
• AS26HS indexing unit with box holding device
• Box dimensions*
  Min. L 200 mm W 160 mm H 140 mm
  Max. L 600 mm W 500 mm H 500 mm
  *Other possible configurations for larger or smaller boxes

Options

• 2 x K12R taping unit - 75 mm width
  Polycarbonate safety protections panels
  Higher legs (AS80)
• Casters (AS77)
  Roller conveyor (RG)
  Extendable conveyor (GTL-GTR)
