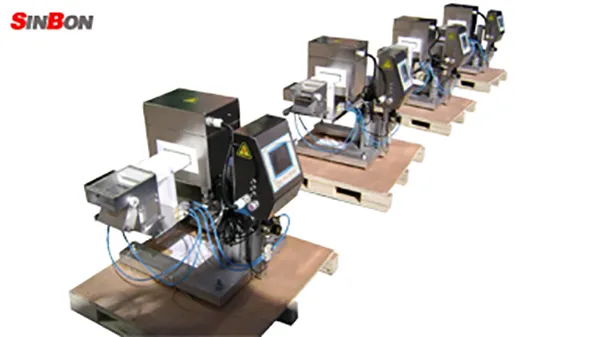

Tablet Metal Detector

Tablet Metal Detector

Best Sensitivity

•  MD-25-1/MD-25-2    Fe Φ 0.25mm ; Non-Fe Φ 0.4mm; SUS316 Φ 0.4mm

FEATURES

• Color Touch Screen LCD operation system, easy to operate
• Digital processing technology, high Sensitive to all kinds of metals
• Advanced auto learn and manual learn to ensure wet/dry product detection well
• 32 different products parameters preset, easy to recall and edit
• Multi-Languages operation system including Chinese, English, Spainish language
• Stainless steel 304 and 316 Structure meet HACCP requirements
• All contact parts with material can be fast disassembled for daily clean
• Quick auto reject system

APPLICATION

Used to detect metals in capsules or tablets in pharmaceutical factories

Used to quality control in pharmaceutical industry

SPECIFICATION

• Model No.: MD-25-3
• Aperture Size: 139mm(W)x40mm(H)
• Sensitivity: Fe Ф0.4mm; Non-Fe Ф0.6mm;SUS316 Ф0.8mm
• Hopper Size: 120mm(W)x25mm(H)
• Hopper Height: 800mm-1300mm(Adjustable)
• Alarm Method: Sound Alarm with Automatic rejector
• Working Environment: Working Temperature: - 5°C- 40 °C
• Power Source: AC220V±7%; 50Hz;1P
• Dimension: 730mm(L)x730mm(W)x1150mm(H)
• Packing Size: 830mm(L)x830mm(W)x1350mm(H)
• Weight: N.W.: 100kg; G.W.: 120KG

OPTIONAL MODELS

MD-25-1 : Sensitivity: Fe Ф0.3mm; Non-Fe Ф0.5mm;SUS316 Ф0.6mm

MD-25-2 : Sensitivity: Fe Ф0.3mm; Non-Fe Ф0.5mm;SUS316 Ф0.7mm
