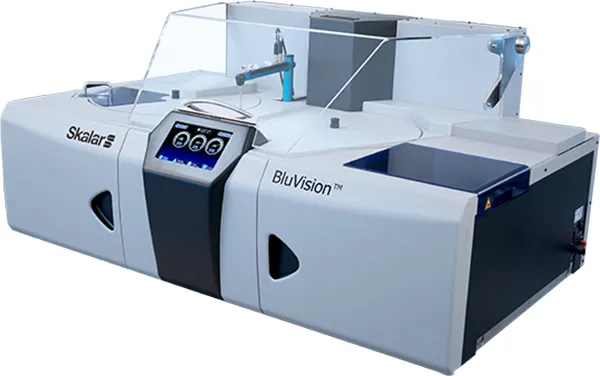

BluVision™
BluVision™
Discrete Analyzer - Automation of basic colorimetric parameters
Overview
Skalar will launch a new automation technology; The BluVisionTM discrete analyzer, for the analysis of basic colorimetric parameters.
The BluVisionTM is specially designed for environmental labs that have a wide variety of sample types and matrices for analysis. The Skalar discrete analyzer automates the sample & reagent pipetting into the cuvettes, mixing, heating and measuring of the reaction product.
With the BluVisionTM discrete analyzer we complement our range of products for the automation of colorimetric analysis, which already consists of the San++ continuous flow analyzer and the SP2000 test kit robotic analyzer.
Operation
The BluVision has 100 sample positions divided over 5 racks of 20 samples each. Sample volumes can range from 3.5 up to 10 ml. For reagents, (stock) standards and QC’s the analyzer has 24 positions of 50 ml and 8 positions of 10 ml. The sample and reagent racks can be cooled during the analysis run.The analyzer is equipped with a cuvette tray of 160 test positions. The cuvette blocks are automatically loaded into the cuvette tray via an autoloader system. The autoloader holds additional cuvette blocks, giving a total of 640 tests running without any operator intervention. The cuvette tray is temperature controlled.
The cuvette blocks are disposable, which eliminates any carryover between tests. Used cuvette blocks are automatically stored in a waste bin for safe removal after analysis. The BluVision has a separate waste container for toxic reagents, selectable per method.
The instrument uses one needle for dispensing sample and reagent into the cuvettes. The needle can pre-heat the samples and reagents before dispensing. A long-life and high-precision pump is used for sample and reagent pipetting.
The detector of the BluVision analyzer is equipped with a halogen light-source and a filter wheel containing 8 filters with different wavelengths. The BluVision is therefore capable of running more than 8 different parameters in one run without any operator intervention. The filters can be easily changed for different parameters.
The cuvette has an optical path-length of 15 mm which allows accurate low ppb level detection.
The BluVision provides a true “walkaway” automatic analyzer, which creates calibrations from stock solutions, auto-dilutes over-range samples or performs re-analysis of samples all in one run.
