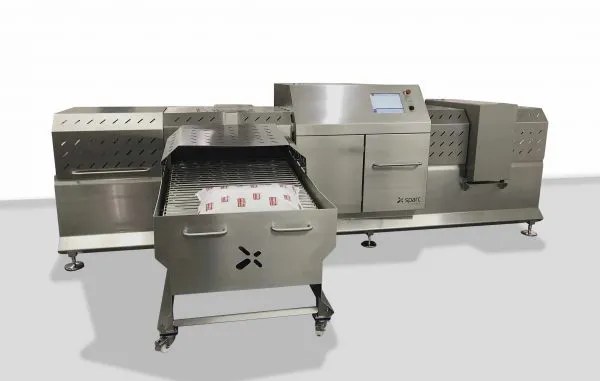

Heracles Checkweigher, Metal Detector & Packaging Inspection System
Heracles Checkweigher, Metal Detector & Packaging Inspection System
The Heracles is a highly accurate, fully integrated; combination metal detection packaging inspection and check-weighing system specifically designed for large format food production applications.
Description
The design allows for the Heracles to be employed to check for potential metal contaminants in both non-metallic packs, sacks and bags, and verify the weight of each product.
The Average Finished Weight Variance (Giveaway) will also be calculated and the system will, if required, provide a control feedback signal to upstream equipment used to portion the product signaling it to increase or decrease the fill quantity.
The robust and easy clean design of the Heracles provides for low maintenance and trouble-free operation in challenging environments.
The System has been designed, engineered and constructed to the highest High Care/Food Grade engineering standards.
Features
Max pack size: 550mm (W) X 900mm (L) X 300mm (H)
Speed: 45 packs per minute.
SD @ 50kg 4g
Weight Capacity: 60,000 grams.
- Totally supported weigh-head concept
- Trend (Servo) feedback to upstream equipment
- Average weight (e mark) or minimum weight operation
- Automatic zero tracking
Configurable Reject Integrity Measures
- Fully compliant with HACCP requirements
- Automatic Test Reports
- Audit Log
All Electric Design
- Servo Driven Reject provides superior reject performance and repeatability
- No Compressed Air required
- Low operating Cost
Data Collection
- Improved Compliance
- Instant, live production, QA reports and batch information
- Sent direct to the network or wireless devices
