PLC Control Panel for Homogenizers

PLC Control Panel for Homogenizers

FEATURES

SPX FLOW’s APV® Gaulin® and Rannie® brand Homogenizers are now available with standard control panels based on PLC control and operator interface via touchscreen.

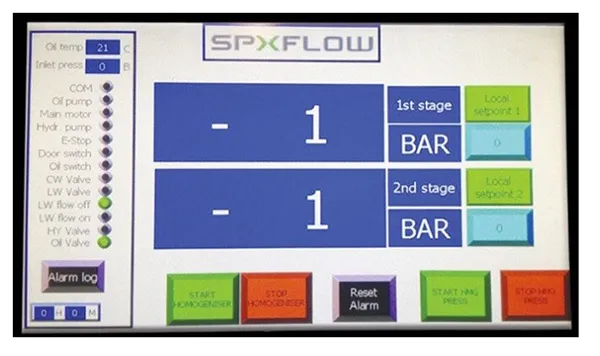

The new panel provides an easy to use operator interface which provides local or remote operation of your homogenizer. All homogenizer controls, displays and alarms are contained in the standard pre-configured solution.

The control solution can be supplied either as a stand-alone panel or combined with a motor starter panel.
Solution Benefits

• Easy to install - pre-configured and factory tested standard program with no on-site programming required
• Improved control of operating parameters
• Enhanced functionality compared to traditional relay controls
• Easy communication to plant control system

Standard Features

• Allen-Bradley® PLC
• Allen-Bradley® 7" touchscreen HMI
• Modbus communication
• Power supply: 85-264 V AC, output 24 V DC
• Emergency stop switch
• Safety circuit
• Mounted in a stainless steel cabinet
• Typical panel dimensions: 60 x 20 x 60 cm

Optional Features

• Profibus® or Profinet® communication
• Environmentally friendly design
• Motor starter(s) and/or frequency convertor in combined stainless-steel cabinet
