SysTech Design

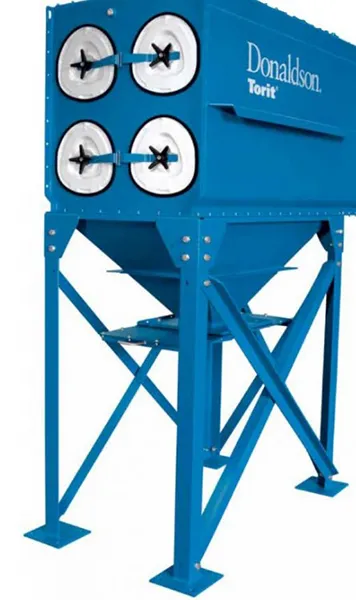

DFE Cartidge Dust Collector

Description

Performance Range: 1,000 to 4,000 CFM.

DFE 2-4 (Product Code AG8408302) includes:

• Standard legs and hopper to accommodate a 55-gallon drum.
• 55-gallon drum cover included (drum by others).
• Left and right-hand side outlet.
• Four (4) Ultra-Web Filters – 1016 sq. ft. filter media.
• Covered power hole for integral fan mounting ( fan is not included in pricing but is available depending upon horsepower required).
• 3 HP Fan motor with exhaust grill.
• Standard paint finish.
• Type 4 pulse control box w/ timer board and Magnehelic gauge (shipped loose).
• Sprinkler tap on the front face.
• The size of the unit is 110″ H x 48″ W x 75″ D with a 55-Gallon drum feature.

Options:

• Ultra-web Flame retardant or spun bound filters
• Delta-P & Delta-P Plus controls
• 5, 7.5, 10, 15 HP fan motors
• Fan silencer
• Fan damper
• Hose drum pack
