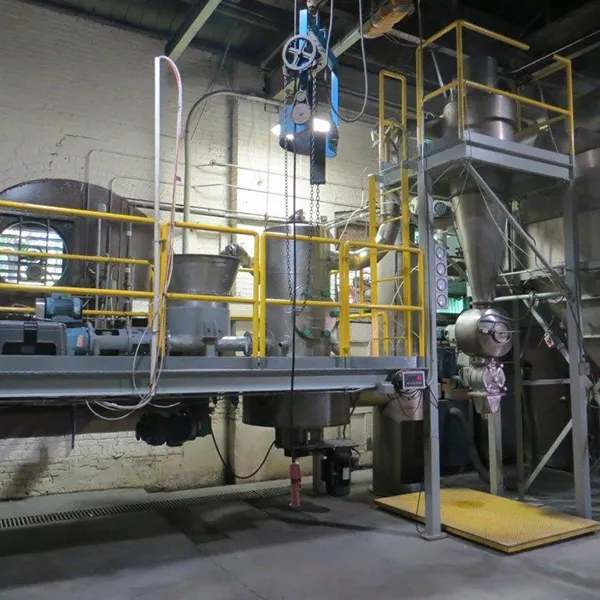

Spin Flash Dryer

Spin Flash Dryer Manufacturers India.

TECHPERT Process Industrieshas technical expertise in process and mechanical design of Spin Flash Dryers for various products like wet cakes, sludge, pasty materials, heat sensitive powders and granules etc. We have design expertise in Chemical Spin Flash Dryers, Food & fruit cakes Spin Flash Dryers, Pharmaceutical Spin Flash Dryers, Sludge Spin Flash Dryers, Pilot Spin Flash Dryers for testing and R&D purpose and for other applications. Our Spin Flash Dryers are ranging from 5 Kg/Hour to 5000 Kg/Hour water evaporation capacity.

Spin Flash / Flash Dryers are used for drying cakes, pastes and heat sensitive materials. The wet feed is fed by screw conveyor into spin chamber duct located at just right height. The feed cake falls onto the specially designed spinning blades and gets disintegrated. This disintegrated material gets smaller in size. Tangential entry of hot air into drying chamber creates a fluidizer effect on particles. Here the drying process starts. Hot air carries the disintegrated and dried particles upwards into the spin duct. In this process the moisture is removed and dry powder is collected at the bottom of the cyclone separator. Fines are collected in either Bag Filter or Wet scrubber depending on nature of product.

We have test facility at our works. If anyone wants to try our products, one can inquire about the charges.
