Pedestal Heaters

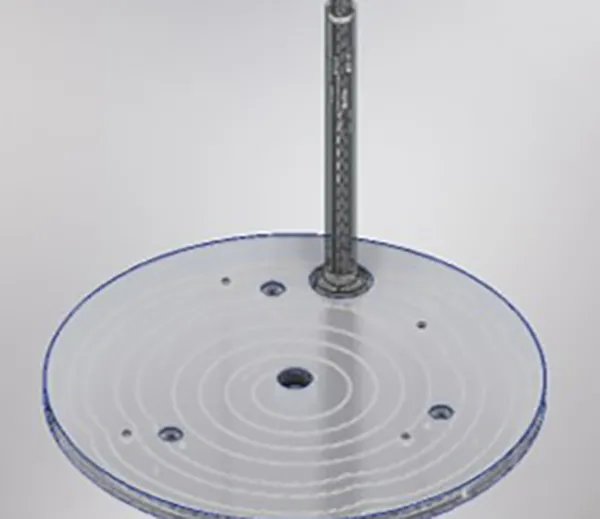

Pedestal Heaters

Therm-x manufactures brazed heater plates for the semiconductor industry. Use of multiple Mineral insulated heating elements allows for better uniformity and multi-zoning for applications where uniformity can't be met with traditional single zone tubular heaters.

Vacuum Brazed Heater Pedestal for the Semiconductor industry

• Single or Multi Zone
• Embedded Sensors
• 550°C Operating temperature
• Sapphire or ceramic lift pins
• Aluminum
• Stainless Steel
• Ceramic
• Copper
• Pyralloy (TPG) option for high uniformity
• Thermal Imaging
• Performance test
• High Isolation Resistance
