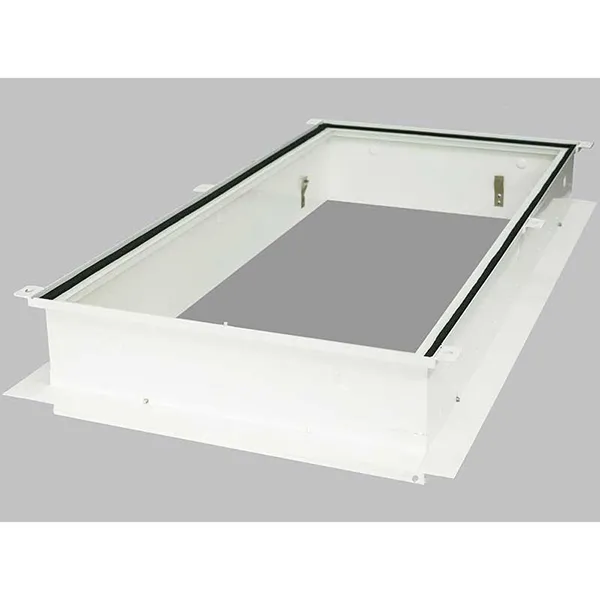

Adapter Frames

Traditionally fans filter units sit on a cleanroom grid ceiling designed to take the load imposed and provide a seal to the ceiling. Where a suitable grid does not exist, it is necessary to install an adapter frame which meets the dimensional requirements of the fan and the opening provided in the ceiling, if it is commercial ceiling grid, spring tee or solid cut out there is a frame to suit with support mechanisms from the ceiling or soffit.

Triple Air have developed a range of adaptor frames for this purpose whichprovide the necessary integral support for HEPA filter installation and air distribution grilles. These frames offer room side or top filter change and a variety of grille faces. Products include: Room Side Change Flush Face and Room Side Change diffuser.

Adaptor Frames – Diffuser

• For use in cleanrooms, laboratories, microelectronic and life sciences,
• Enables FFU’s to integrate with all ceiling types
• Provide support for FFU and Hepa filter
• Room side or top filter change
• Allows use of diffusers
