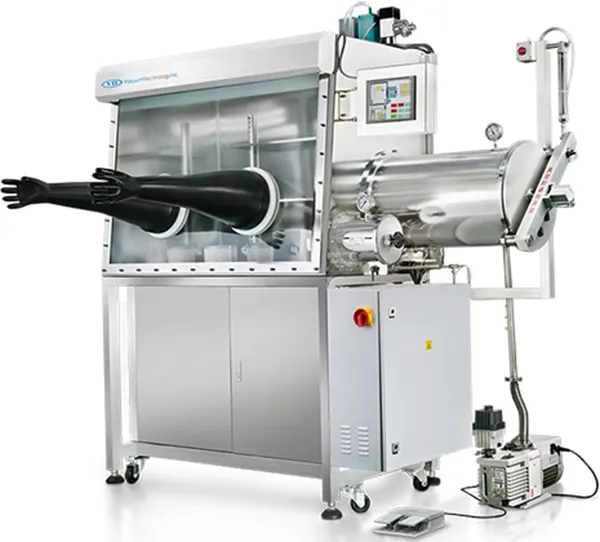

Upure 2 Glove Box

Upure 2 Glove Box

Vacuum Technology Inc. is launching the Internet of Things Glove Box System.

Our new glove box system allows users to remotely operate, monitor, and run diagnostics on their glove box.

Features

• Remote Monitoring and Control of Glove Box
  Users can monitor the working conditions of the glove box from their computer or smartphone.
• Data Encryption and Backup
  When there is a data transmission error, interruption, corruption, or loss occurs because of network failure, users can restore and track historical data of the equipment through our system. You can configure the firewall to ensure data integrity and security.
• Failure Alarm
  If the equipment fails, the system will send a notification to the user and automatically start the failure protection routine.
• Remote Diagnostics and Adjustments
  Our engineers can access, debug, and restore the system remotely.
• Online Help
  Users can access online learning resources for the operation of the monitoring and control system. Users can also solve problems themselves using our Online Help site.
• Free Customer Service Online
  We offer online communication tools (email, chat, video conference, etc.) with our service staff or engineers to solve issues if they arise.

Specifications

• Main Chamber
  Modular length: 1220mm/1500mm/1800mm/2440mm ( 48.0”/59.1”/70.9”/ 96.0”)
  Modular depth: 750mm/1000mm/1200mm (29.5”/39.4”/47.2”)
  Modular height: 900m( 35.4”)
  Material: Stainless steel type 304, thickness 3mm (1/8”)
  Sight Windows: Inclined, Safety Glass, thickness 8mm (1/3”)
  Gloves Ports: POM (Polyoxymethylene), 220mm (8.7”) Diameter
  Gloves: 8B1532
  Dust Filter: HEPA 0.3μ, one gas inlet, one gas outlet
  Shelving: Stainless Steel, two fixed shelves (adjustable shelves available)
  Lighting: External LED lights, front mounted above sight glass.
  Feedthroughs: One power feedthrough, 3 blind-flanges
• Large Antechamber
  Diameter: 360mm (14.2”) or 400mm (15.7”), Length 600mm (23.6”)
  With Sliding tray
  Spindle lock door, Vertical operation with lifting mechanism
  Automatic door system, both inside door and outside door are inter-locked.
• Small Antechamber
  Diameter 150 mm (5.9”) or 100mm (3.9”), Length 300mm(11.8”)
  Hinged door
  Manual operation via hand valve
• Purifier
  Removal of H2O and O2  to Less than 1 ppm moisture and oxygen
  Absorber Unit: 5kg Copper catalyst,5kg Molecular sieve
  Capacity to remove oxygen, 60L , moisture 2000g.
  Encapsulated Blower: 90m3/h
  Regeneration: PLC control all process including heating, introducing mix gas (working gas mixed with Hydrogen 5-10%), etc.
• System Control
  PLC and HMI: Siemens S7
  Based on the Internet of Things concept to realize remote Operation and Diagnose
• Vacuum Pump
  8m3/h Rotary vane pump with oil mist filter and gas ballast

Accessories Options

• Moisture Sensor
• Oxygen Sensor
• Solvent Absorber
• Heated Antechamber
• Refrigerator
• Cold Well
• Microscope Unit
• Ionizer without fan
• Various Feedthroughs

Other Options

• Customized box sizes
• Integrating  customer’s instruments into the glovebox, like evaporator, ALD System and Spin Coater etc.
• Polycarbonate Window(s)
• Quick Release Window(s)
• Antechamber with interlocking door
• Small chamber with sliding tray
• Antechamber purging  only without vacuum
• Antechamber refilling from Gas cylinder instead of box
• Rectangular Antechamber
• Flexible shelves – adjustable up & down – adjustable back & forth
• 12m3/h Rotary pump
• Dry scroll pump
• Prompt service

Advantage

• Remote Control and Diagnose
  Based on the Internet of Things concept to realize remote operation and diagnose
• High Capacity Purifier
  Rapid removal of H2O and O2 to less than 1ppm
  Long intervals between regeneration cycles.
• PLC Control and Color Touchscreen HMI
  Automatic Purge; Circulation; Regeneration; Pressure control; User Friendly Interface.
• Long Life Moisture and Oxygen Analyzers
  P2O5 Moisture Sensor: Corrosion resistant, Renewable by acid-cleaning if the probe is contaminated by HF or other corrosive environmental exposure.
  ZrO2 Oxygen Sensor: Solid sensor, long life, can be exposed to air without consumption.
• Customize a glove box specially for your application
  Our engineering team can help to turn your idea into a solution.
• Stainless Steel gas pipes and connectors
  All the gloveboxes has been upgrade to stainless steel pipes and connectors with much higher corrosive-proof for highly corrosive environment.
