Viking Masek

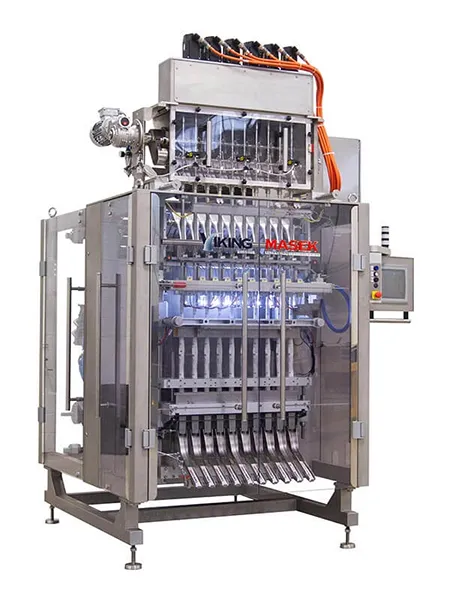

Stick Pack ST800

Stick Pack ST800

Features

• Powered film unwind with film tension control
• Film slitters and forming tubes - set per bag size
• Discharge chute
• Siemens or Allen Bradley control system
• Automatic film tracking
• Integrated inner light
• GMP construction
• Easy change-over

Specifications

• Maximum Roll Diameter: 450 mm (17.75")
• Maximum Roll Width: 800 mm (31.49")
• Weight: 1,200 kg (2,650 lbs)
• Air Pressure: 6 bar (30 CFM at 90 PSI)
• Power Supply: 6.5 kVA (480V, three phase, 60 Hz., 20 AMPS)

Options

• Straight cut
• Zigzag cut
• Round cut
• Multi-lane volumetric filler, servo auger filler or servo liquid fillers
• Easy change-over parts and stainless steel storage cart
• Easy open features like tear notch or microperforation
• Various seal patterns and shapes
• Offset back seal
• Automatic stickpack length adjustment
• Individual discharge chutes
• Empty stick detection
• Empty stick rejection
• Dust suction nozzles
• Static elimination
• Film edge trimming and suction
• Embossing in the longitudinal seal
• Stainless steel construction
• Pharma construction (IQ/OQ)
• Robotic pick-and-place unit and automatic cartoning solutions
• Hot stamp, inkjet, or thermal transfer printer
• In-feed and out-feed conveyors
