Weld Fittings

Weld Fittings

VNE Stainless Fittings

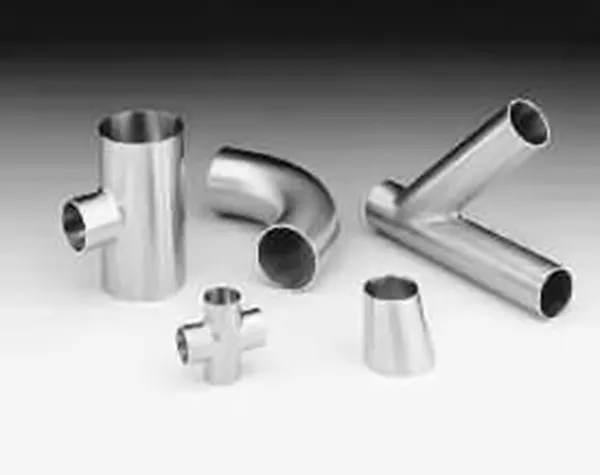

Weld Fittings are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required. Our fittings are offered in nominal tube sizes 1/2˝ through 8˝ in T304 and T316L materials. Uniform wall thickness for 1/2˝ through 3˝ sizes measure .065 (16 ga). In 4˝ size, wall thickness measures .083 (14 ga), 6˝ and 8˝ .109 (12 ga)

VNE offers Polished ID and OD Fittings for immediate shipment. Other polished combinations may be ordered. Our products meet all 3A requirements.

Specifications....

Ordering Specifications....

Size Range:

1/2˝ OD through 8˝ OD

Specify:

• Quantity
• Product description or Part No.
• Size
• Material Type
• Polish Requirements

Materials:

T304
T316L





Finish:

No. 7 - ID & OD

No. 5 - OD only

No. 3 - ID only

No. 1 - unpolished





Limited Warranty....

VNE Stainless Fittings are warranted to be free from defects in material and workmanship for a period of one year from the date of shipment. Any product that proves to be defective shall be repaired or replaced at the option of VNE, providing it has been used as recommended and in strict accordance with recognized piping practices, and that has not been subject to extraordinary service, such as encountered under severe corrosive or abrasive conditions.

VNE makes no warranties, express or implied, other than those listed above.

VNE shall not be liable for any consequential, indirect, incidental or contingent damages.
